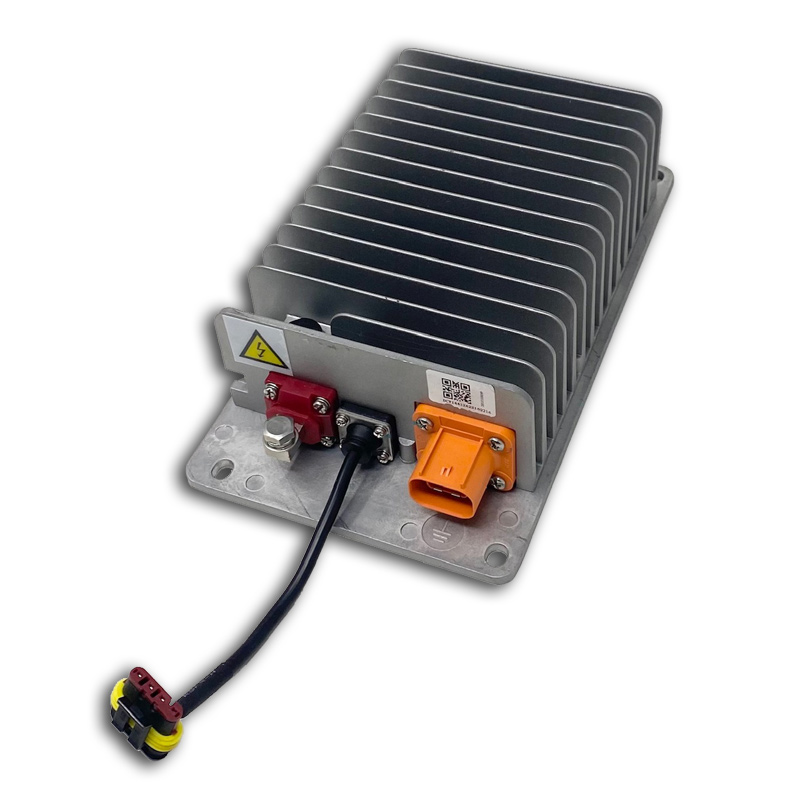

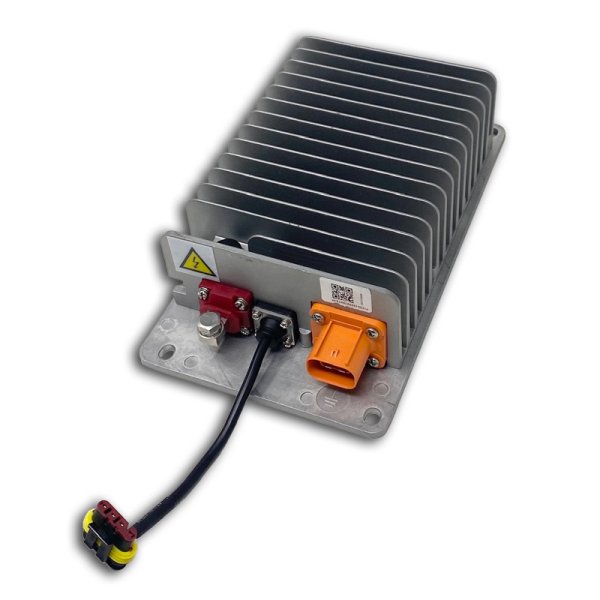

DC/DC Converter 1000W Isolated 74-162 Volts DCDC - DCC

The High Efficiency Series DC/DC Converter is specifically designed to provide a 14.0 volt supply for auxiliary electrical systems in electric vehicles. By adapting the internationally advanced digital analogy technology, it has high transition efficiency, mini-type, easy to install, open circuit operation for long time, lower static power, stable output voltage, larger capacity, well-found protecting function, high stability and long lifespan. Employing soft key technology, it has the functions of fail safe for low-voltage, short-circuit protection, overheat and over current protection. High transition efficiency, allowing sustained short-circuit, reset after shorting are its advantages.

Please provide your battery model, voltage specs as well as your battery configuration to ensure you are receiving the correct converter.

Input Current Range: 0-12 Amps at 80 volts
Output Current Range: 0-72 Amps at 14.0 volts

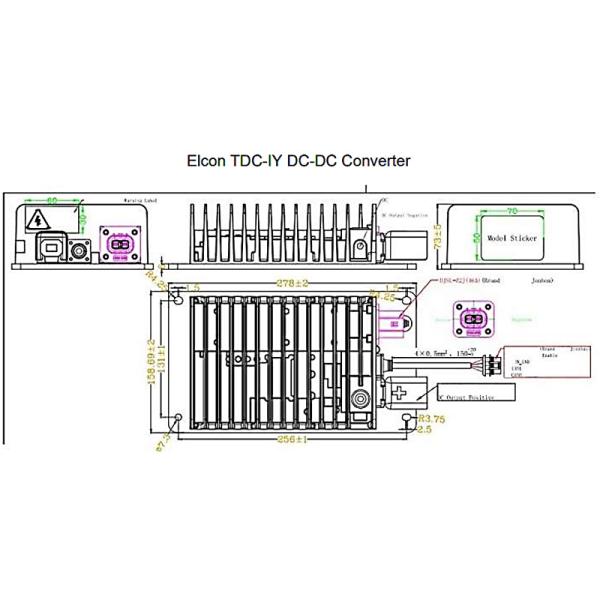

Height: 75 mm
Width: 160 mm
Length: 280 mm
Weight: 5 lbs
Max Input Voltage Range: 74-162 volts DC
Short Circuit Protection: Internally protected
Overheat Protection: Yes at 90C
Shock and Vibration: SAE J1738 Standard
Warranty Period: One year
