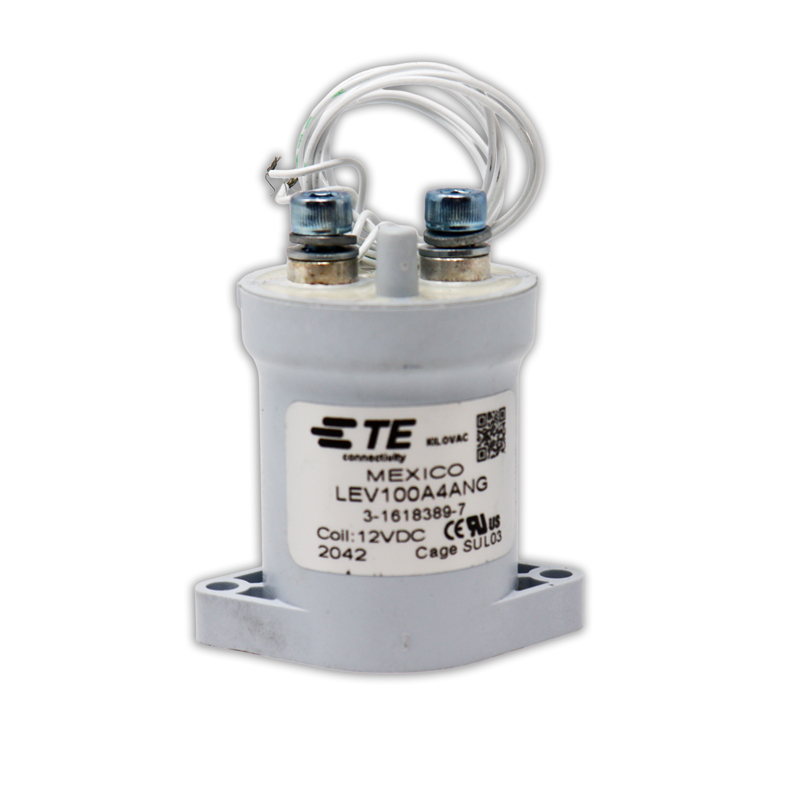

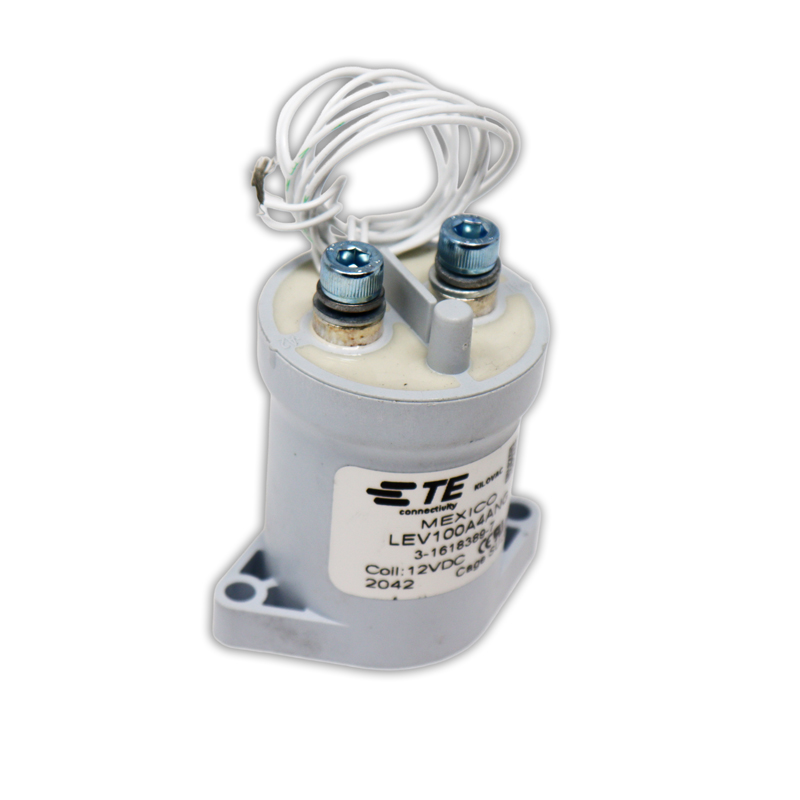

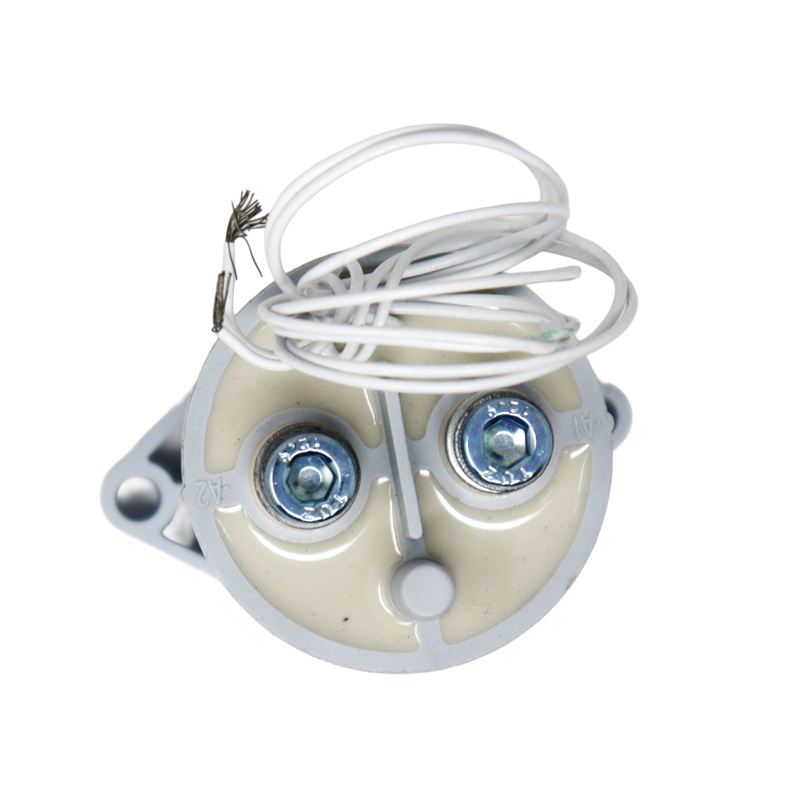

TE LEV100 Mini Contactor Relay

Model: EV100
This TE LEV100A4ANG contactor is rated 100 A continuous and is the lowest cost sealed DC contactor in the industry.
  • Model
  • EV100
$88.00
 In stock
Product Overview

Description:

This TE LEV100A4ANG contactor is rated 100 A continuous and is the lowest cost sealed DC contactor in the industry. Hermetically sealed and able to perate in harsh environments without oxidation or contamination of contacts, including long periods of non-operation. 8 kV isolation between open contacts permits use for high voltage isolation with 12 VDC Coils. Designed and built in accordance to AIAG QS9000

This is a great alternative for the hard to find Gigavac P115 and P195 contactors.

Max Current Rating: 1250 Amps
Current Rating: 100 Amps Continuous
Voltage Rating: 900 VDC
Coil Voltage: 12VDC
Length: 1.5 Inches
Width: 1.5 Inches
Height: 2.3 Inches
Type: SPST, Normally Open
Hermetically Sealed: Yes
Economizer: Internal



pdf Click Here for Data Sheet
