Manufacturer: VW
Model ?

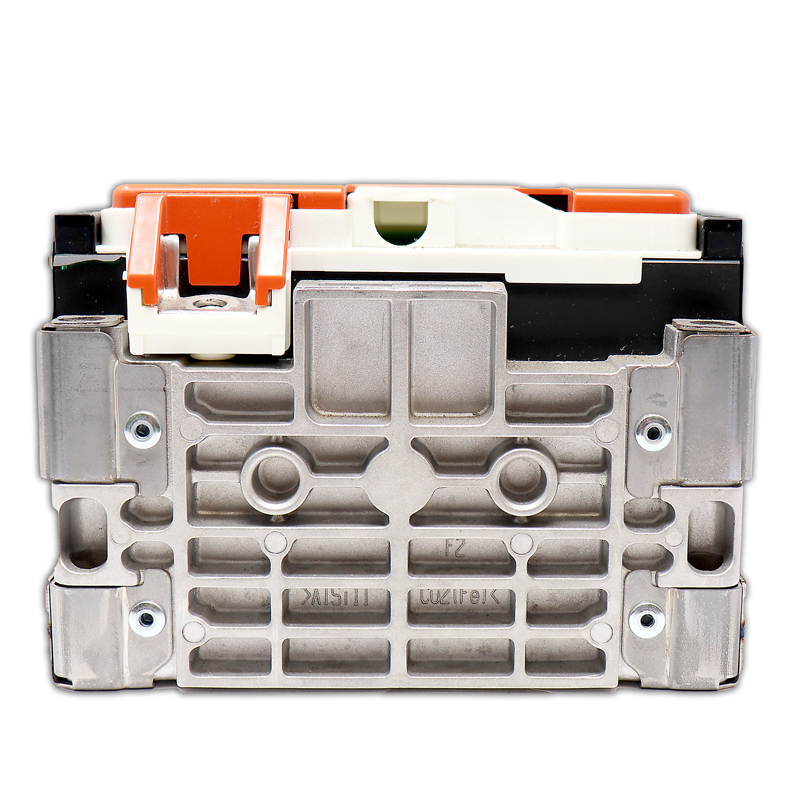

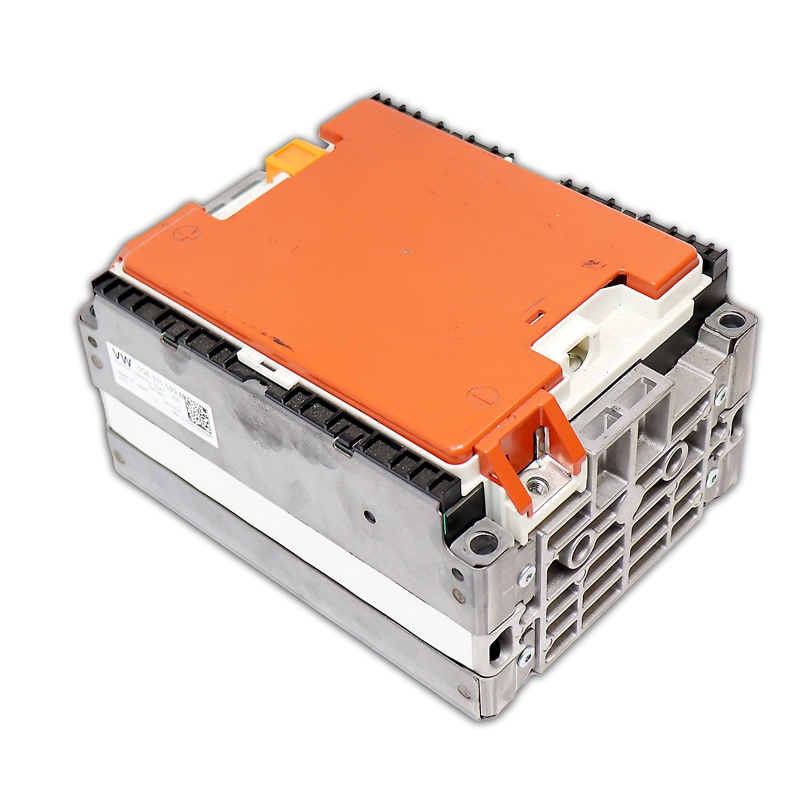

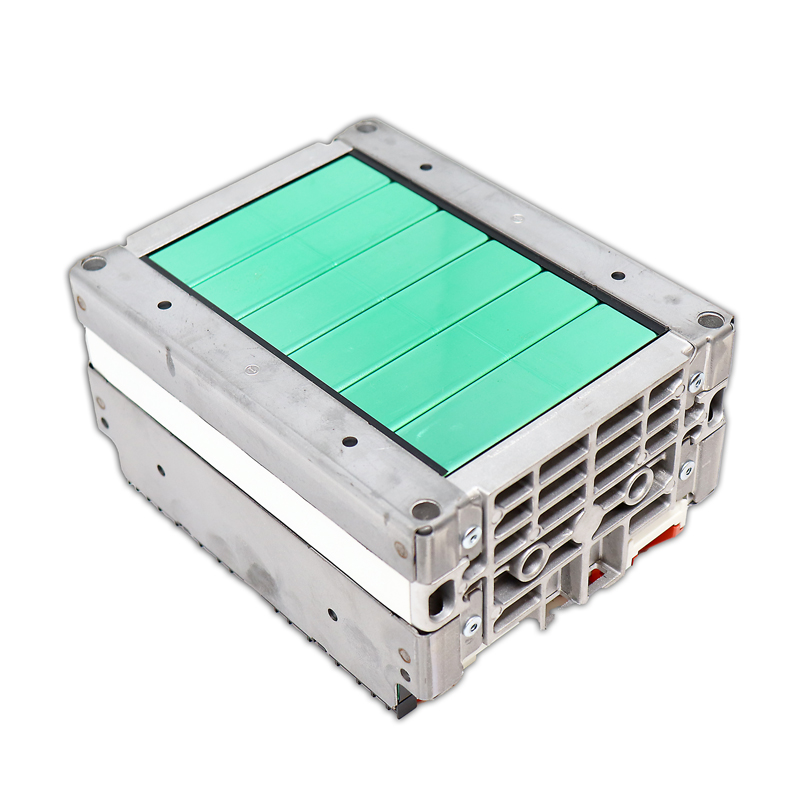

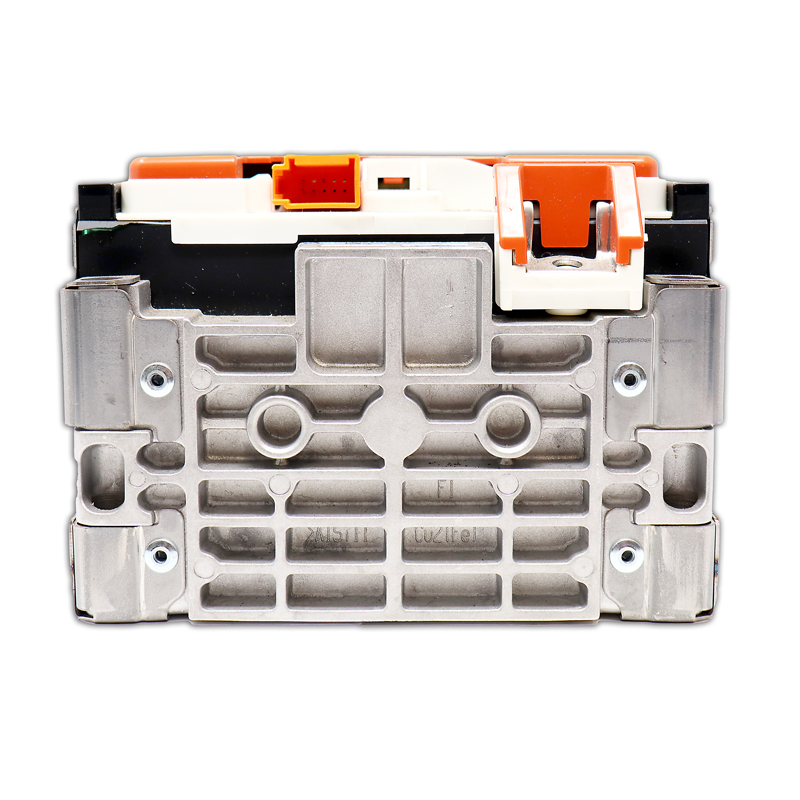

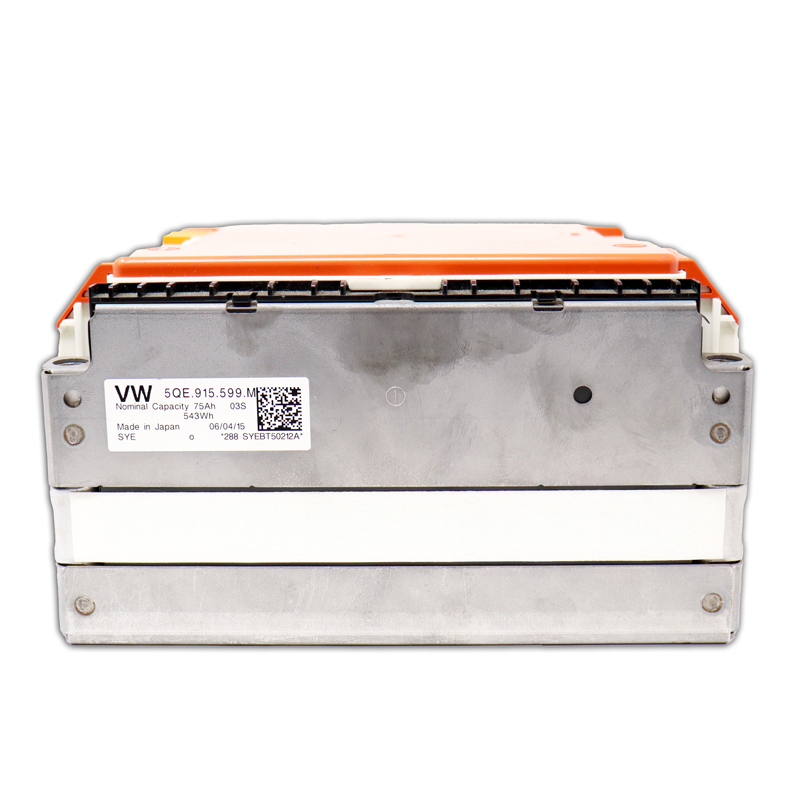

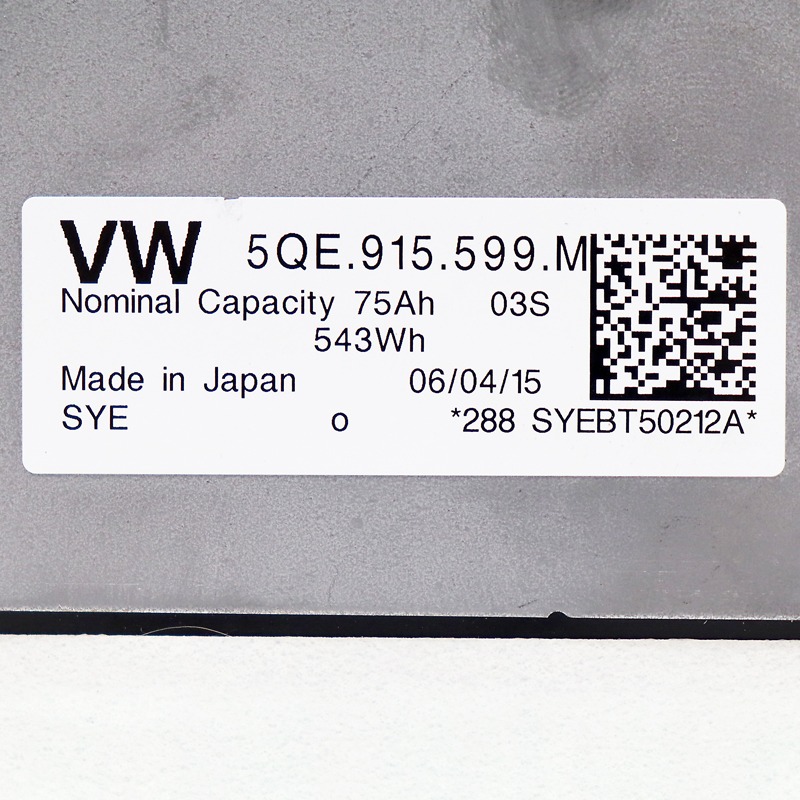

Individual battery modules from VW eGolf battery packs.
This module is configured in a 3P2S, 75Ah, 543Wh per module. The bottom of the module can be attached to a custom cooling chill plate for higher current applications for thermal management.
No BMS plugs are included and an external BMS is recommended with typical usage.
Nominal Module Energy: 543Wh
Nominal Capacity: 75Ah
Module Configuration: 3P2S
Peak Discharge Current: 450A
Nominal Discharge Current: 300A
Peak Charge Current: 50A
Max Module Voltage: 8.3V
Nominal Module Voltage: 7.4V
Min Module Voltage: 6V
Max Cell Voltage: 4.15V
Nominal Cell Voltage: 3.7V
Min Cell Voltage: 3V
Length: 7 5/8 inches
Width: 6 inches
Height: 4 3/4 inches
Weight: 11 1/2lb
