Manufacturer: VW
Model ?

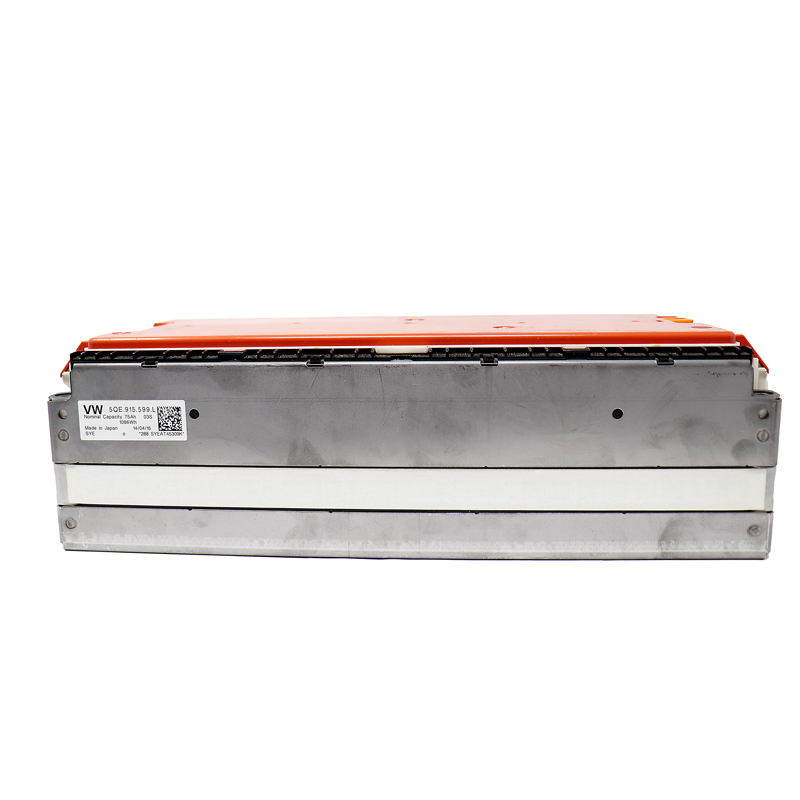

Individual battery modules from VW eGolf battery packs.

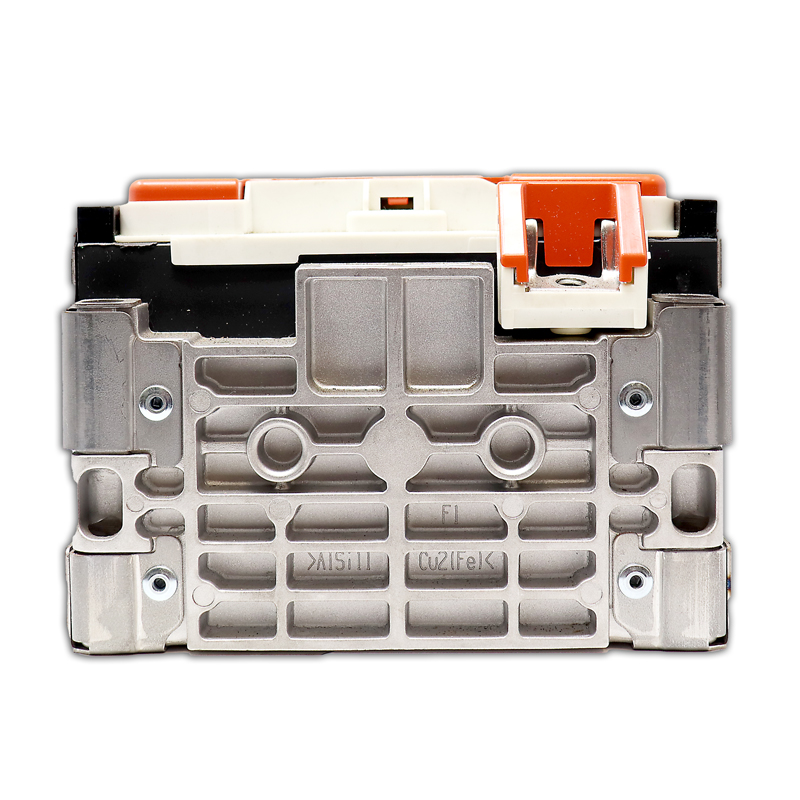

This module is configured in a 3P4S, 74Ah, 1086Wh per module. The bottom of the module can be attached to a custom cooling chill plate for higher current applications for thermal management.
No BMS plugs are included and an external BMS is recommended with typical usage. Nominal Module Energy: 1086Wh Nominal Capacity: 75Ah Module Configuration: 3P4S
Peak Discharge Current: 450A Nominal Discharge Current: 300A Peak Charge Current: 50A Max Module Voltage: 16.6V Nominal Module Voltage: 14.8V Min Module Voltage: 12V Max Cell Voltage: 4.15V Nominal Cell Voltage: 3.7V Min Cell Voltage: 3V Length: 14 inches Width: 6 inches Height: 4 3/4 inches Weight: 21.75 lb
