High Voltage Low Current EV Inline Fuse Holder - With Optional Waterproof Boot - Fits Midget Size
High Voltage Low Current EV Inline Fuse Holder - With Optional Waterproof Boot - Fits Midget Size
Model
:
Inline Holde
The inline waterproof fuse holders are great for EV applications where you need protection in a line that is outside of an enclosure. For locations that are open to the environment, we strongly recommend using the optional waterproof boots. The holde...
Select to Include Boot:
No, Don't Include the Boot
Yes, Include the Boot. (+$10.00)
Manufacturer
Ferraz Shawmut
Model
Inline Holde
$
33.00
Coming Soon
Add to Basket
In your cart
Add to Basket
Notify me when in stock
Qty:
Product Overview
Product Overview
Description:

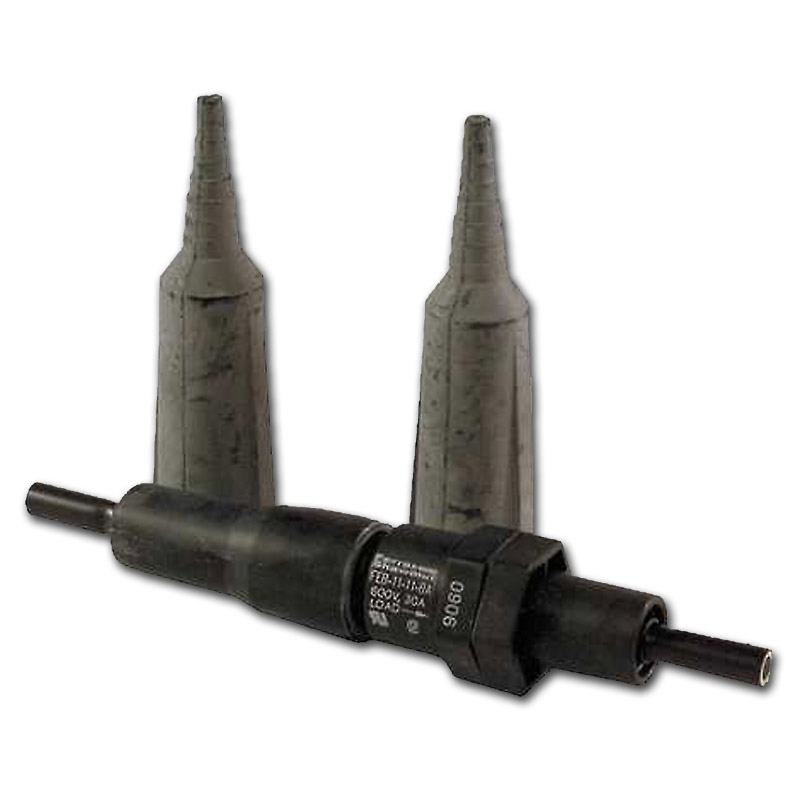

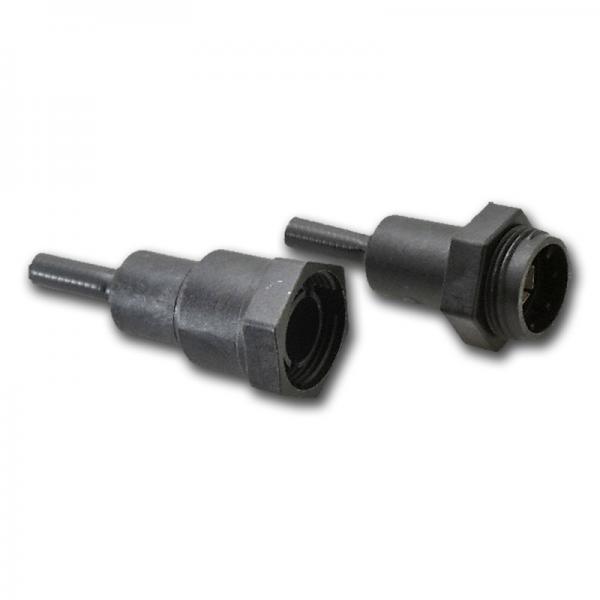

The inline waterproof fuse holders are great for EV applications where you need protection in a line that is outside of an enclosure. For locations that are open to the environment, we strongly recommend using the optional waterproof boots. The holders are rated 30 Amp continuous, but have a special UL rating up to 50 Amps peak for high in rush components such as the capacitors in DC/DC Converters, vacuum pumps, power steering pumps and cabin heaters.
Current Rating:
50 Amps Max, 30 Amps Continuous AC/DC
Voltage Rating:
600 Volts AC/DC
Breaking Amps:
100,000 AIC AC/DC
Assembled Length:
4.3 Inches
Warranty Period:
One year
Click Here for Manufacturer Specification Sheet
