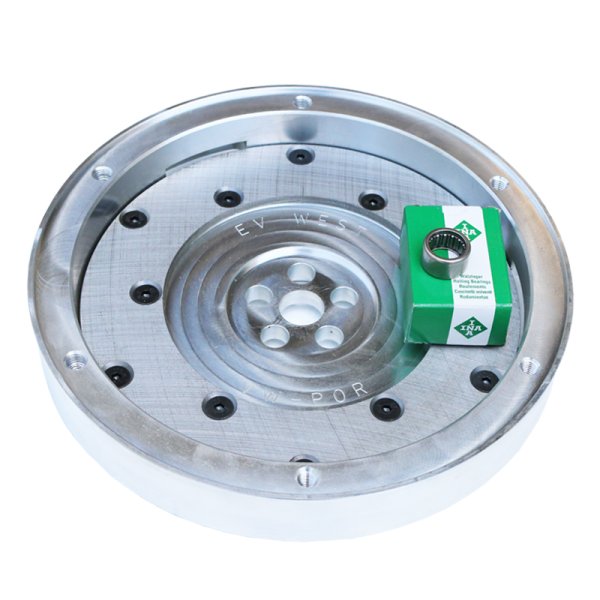

This exclusive EV West lightweight aluminum flywheel weighs only 5.25 pounds and can significantly reduce vibrations compared to stock flywheels. It is designed to work in a variety of applications that use the 5 Bolt Porsche Pattern coupler. Pilot Bearing is included. There are additional options for a 200mm Solid Disc Exide Clutch as well as a 200mm Kennedy Stage II Pressure Plate. Please select the optional components from the drop down menu. NOTE:All flywheels are machined to be an interference fit and must be heated on a hot plate to 600 degrees prior to installation on the motor coupler. Torque specs are as follows: Flywheel to Shaft Coupler (M12) Steel: 60 lb/ft Motor to Motor Adapter Plate (3/8) Aluminum: 15 lb/ft Pressure Plate to Flywheel (M8 or 3/8) Aluminum: 15 lb/ft Motor Adapter Plate to Bell Housing (3/8) Stainless Steel: 13 lb/ft Related Link (pressure plate): https://evwest.com/kennedy-200mm-stage-2-2100lb-pressure-plate-for-vw-stg2
Related Link (clutch disc): https://evwest.com/exedy-racing-replacement-clutch-disc-b503-for-vw
Refer to the images below to identify whether your transmission is an early model (without a guide tube) or a later model (with a guide tube).
.
Pressure Plate instruction card
