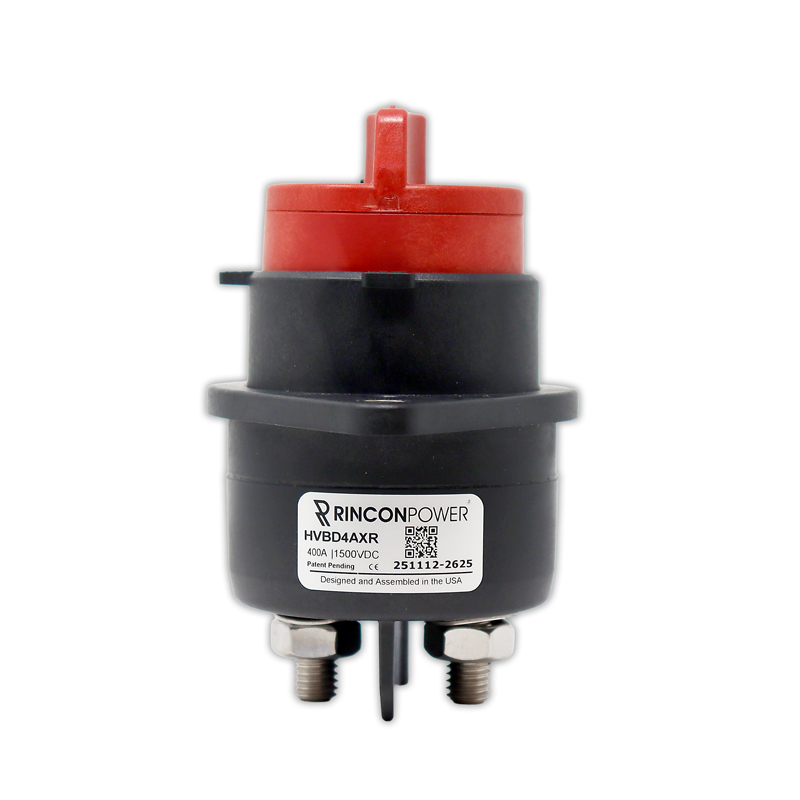

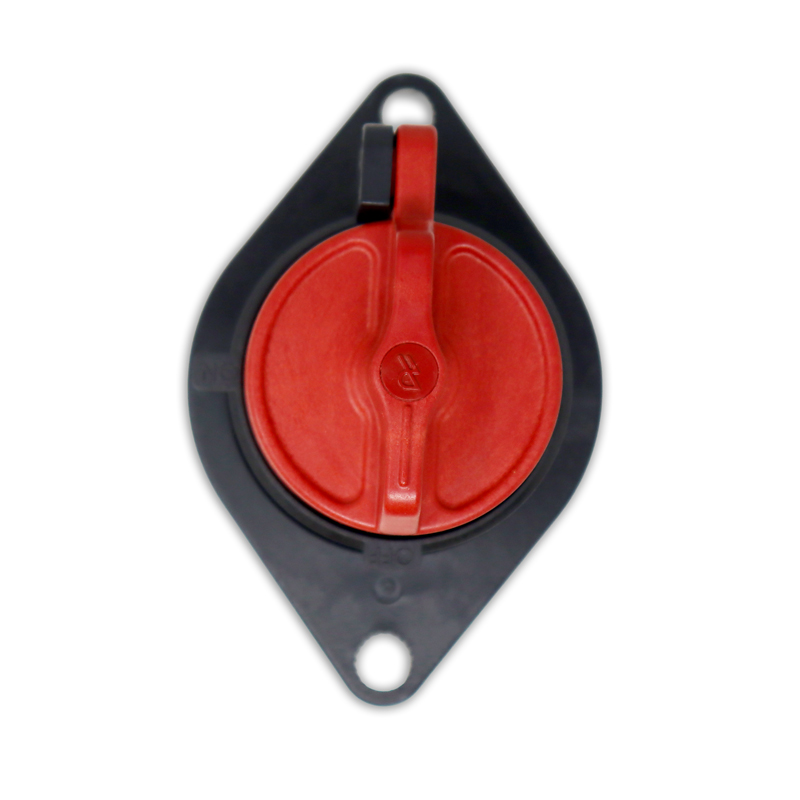

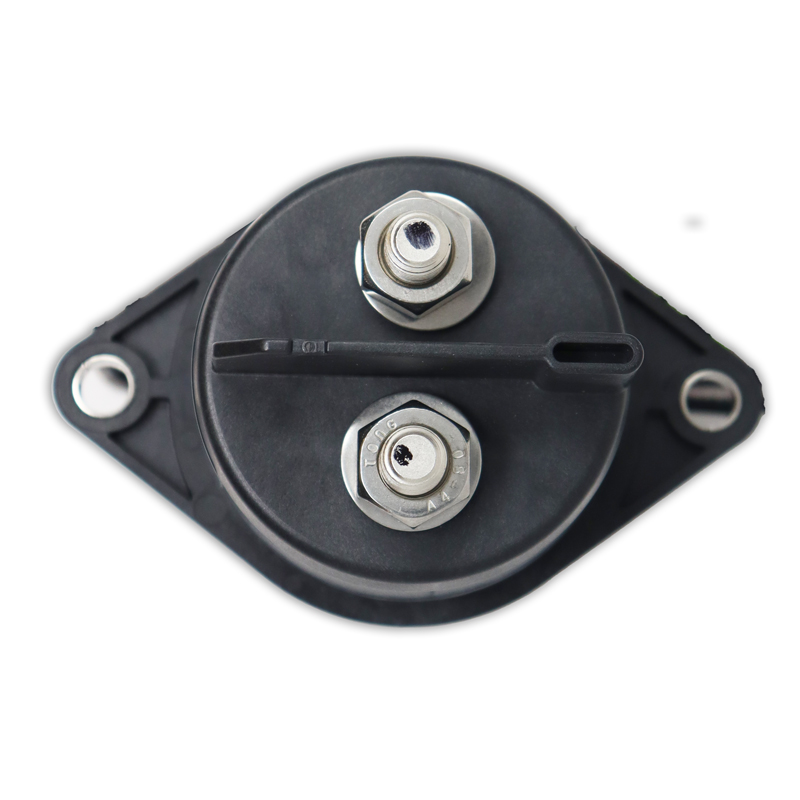

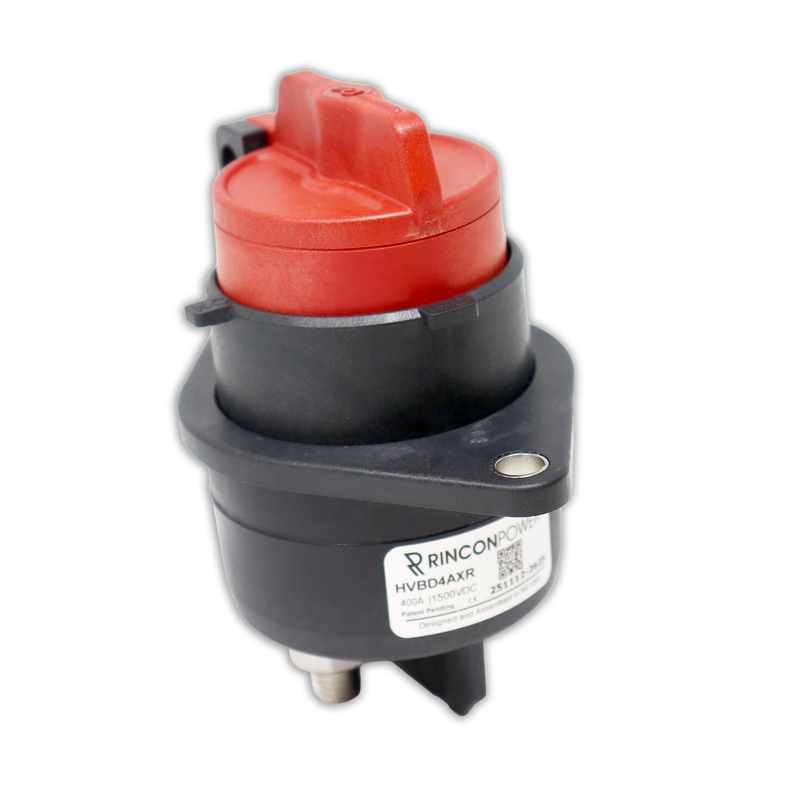

Rincon Power HVBD4AXR - 400 A Continuous - 1000 Volt Max Hermetically Sealed Disconnect Switch

$159.00
 In stock

Description:

Manual locking disconnect for your traction battery pack, very positive engagements and has a rating of 1000V at 400 amps continuous. This switch can withstand current as high as 2000 amps for 1 minute so this should work for just about any motor and controller combo we sell here at EV West. This switch is intended to be used as a periodic maintenance switch, and daily switching and emergency cut off should be performed by contactors, or switches with a higher break current rating.

This is a replacement for the GIGAVAC HBD41 that is no longer available.

Features:
Hermetically sealed. Can be used in dusty, wet, and flammable environments.
Sealed contacts ensures low voltage drop.
Fiber composite housing and hermetic seal prevent corrosion inside and out.
Lock-out / Tag-out meets OSHA requirements.
Continuous rating: 400A. Overload 1 minute rating: 2000A.


Click Here for Data Sheet
