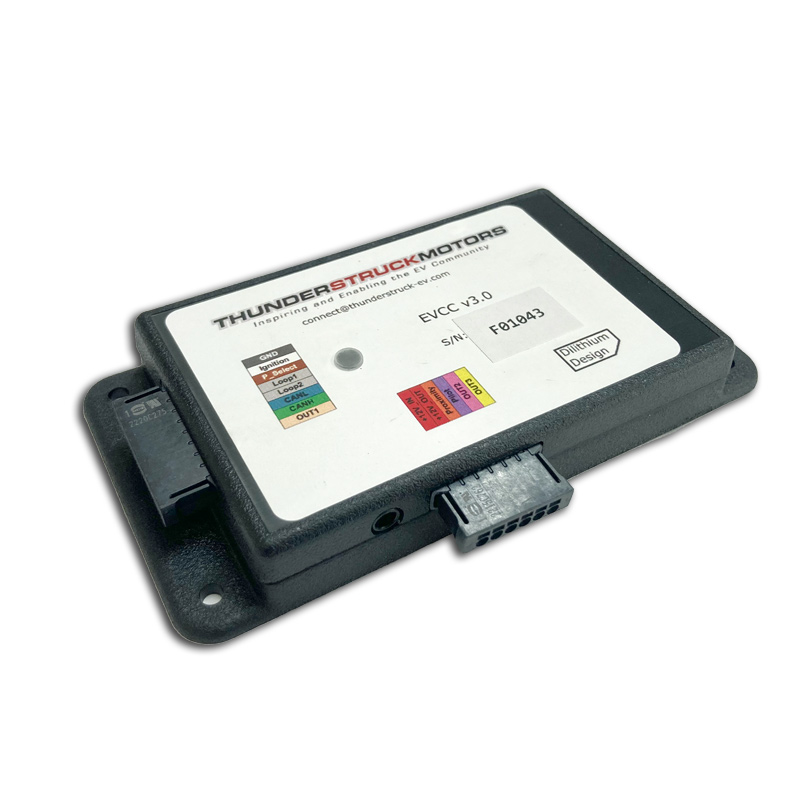

The Thunderstruck EVCC (EV charge controller) creates a user-configurable charging solution for almost any pack. If you change your battery pack configuration you don't need to pay someone to reprogram it for you.
This EVCC integrates charger CANBUS control and J1772 functionality. It has a compact enclosure with easy to use connectors and 4' lengths of wire. Charge parameters such as maximum voltage, maximum current, and total charge time are configured and saved for use when charging with a CAN enabled charger. Controls up to four chargers in parallel for quicker charging!
Optional Car Kit Includes a portable EVSE and J1772 port with 6' power cable - for universal charging.
Features Include:
• All charge parameters are user-configurable in the EVCC via text interface
• Communicates with J1772 Type 1 and Type 2 support equipment (EVSE) for home and public charging
• Automatic charge start and stop when plugging in with J1772
• Configurable delayed charging when plugging into a TOU capable J1772 EVSE
• Integrates with Dilithium BMSC to make a complete battery solution
• Outputs available for operator alerts, driveaway protection and other system functions
• Loop input feature allows charge interrupts via charge disable outputs from other BMS manufacturers
• Compatibility includes CAN-enabled TSM2500, 1500, ElCon, and Lear chargers, as well as compatibility with Orion BMS
• Configurable charge profiles for different charge configurations, power sources or SOC requirements
• Comes with an LED/Buzzer for operator alerts
Warranty: 1 Year
Voltage: 48-408 DC Volts
Origin: Made in the USA
Click Here for EVCC Manual
Click Here for EVCC Enable and Power Loop Schematic

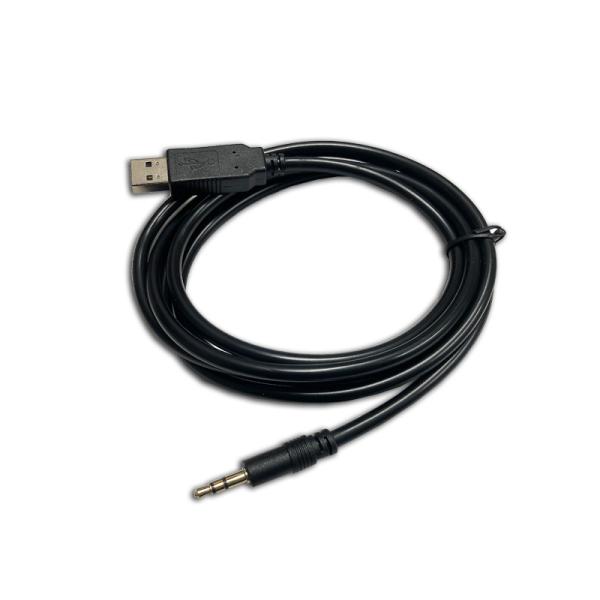

Click Here for Serial Connection Utilities
Click Here for EVCC Drive Away Protection Schematic
