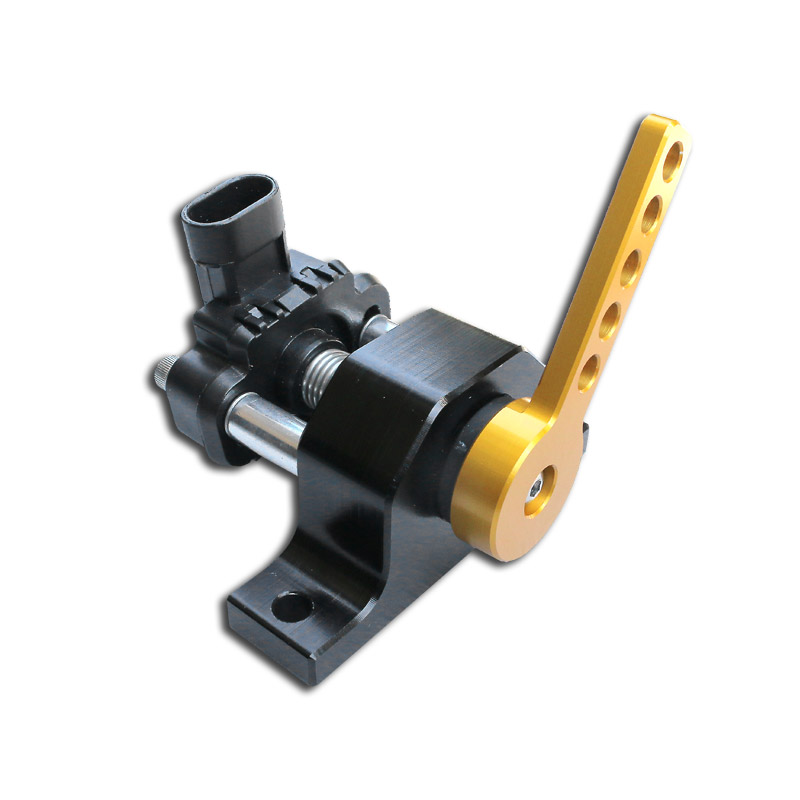

EV West Billet Aluminum Throttle Potentiometer

Model: EVWThrottle
This product is discontinued. See the links below.
  • Model
  • EVWThrottle
$149.00
 Currently out of Stock
Add to Basket

Description:

This product is discontinued.



Click the following link for the replacement product:

hall throttleEV West Billet Aluminum Hall Throttle Sensor

This Hall effect throttle meets the newest standards for safety. We do still provide replacment sensors for the Potentlometer, here is the link for the sensor only:

sensorEV West Billet Aluminum Throttle Potentiometer - OEM Throttle Position Sensor (TPS)

Uses a high quality OEM throttle position sensor (TPS) that is rated for 1 million full cycles. It is then mounted to a solid block of machined 6061-T6 aluminum to mate with an indexable shaft supported by a sealed ball bearing and with an additional return spring and mechanical stops. The TPS and its electrical connector are fully sealed. There is an internal return spring, as well as a redundant external return spring.

This throttle pedal assembly is perfect for kit cars, or any application where the original throttle can not be used. By using a sealed potentiometer, this creates the desired 0-5 volt output that almost all controllers use, giving reliable, linear power delivery.

The throttle sensor is available in a dual channel configuration for controllers that require two throttle signals. Select the dual channel option in the drop down menu when ordering.

Red: 5V Supply Positive
Black: 5V Negative
White: 5V Output

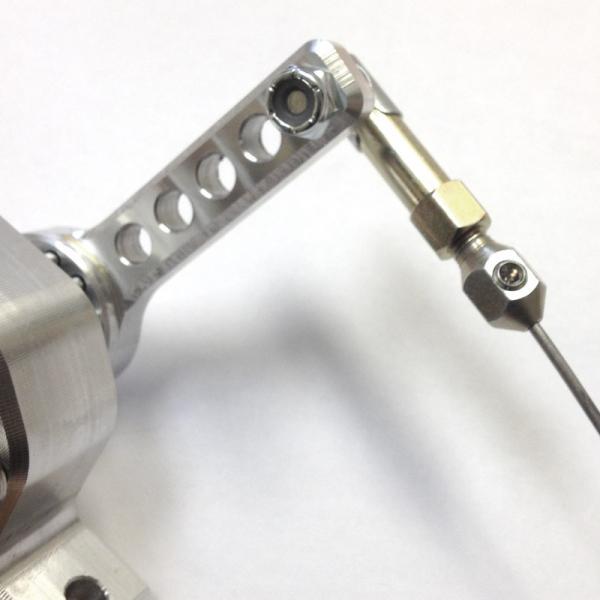

Available with Ball and Socket Linkage

Two Year Unlimited Warranty

pdf Click Here for Specification Sheet
