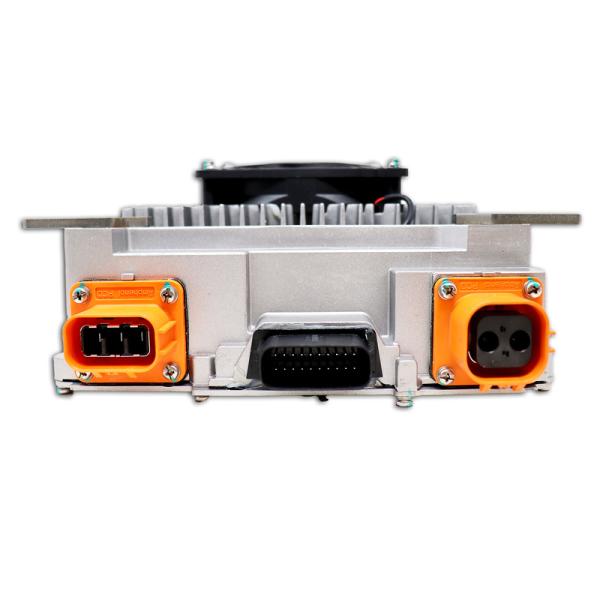

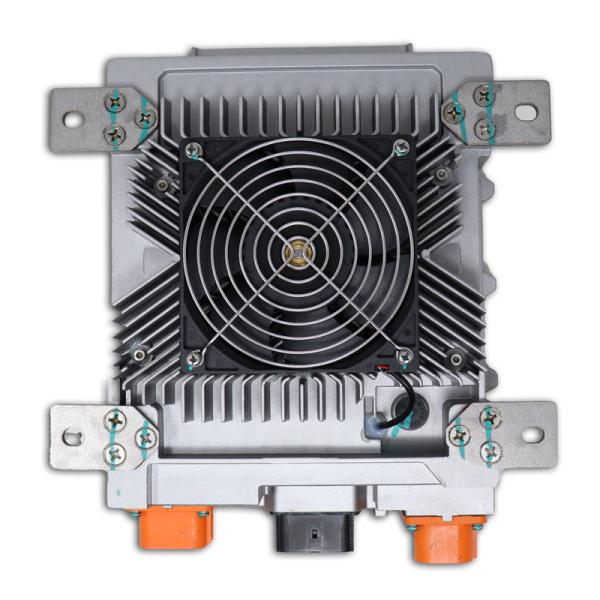

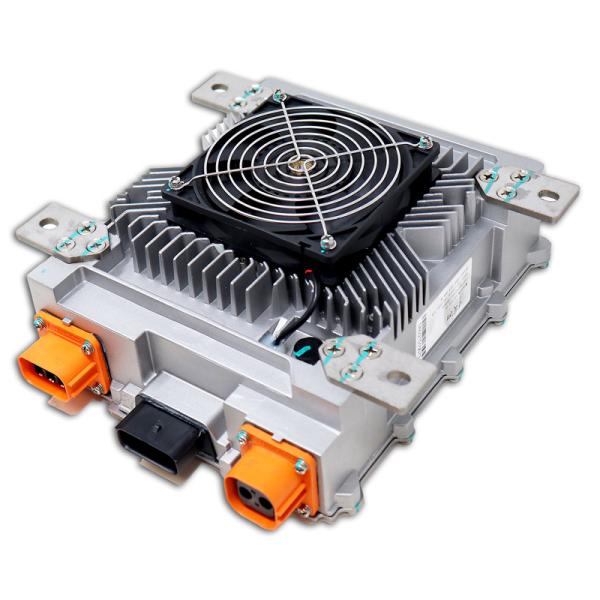

The UHF6600 is an excellent low cost solution to high voltage, medium amperage charging that comes in a sealed enclosure. Being one of the more versatile chargers by being able to accept both 110v and 220v, the UFC6600 is a great air cooled charging solution. These chargers have voltage specific windows to operate in, and the final charge voltage and current is set by a required CAN bus charge controller. Charge controller is included with the charger unless otherwise noted. If you have any questions in regards to your traction pack voltage please reach out to sales@evwest.com or include the information in the notes when ordering.
Input Current Range: 0.2 to 32A AC
Output Current Range: 4A to 20A DC (depending on model)
Height: 6.2 inches
Width: 9.0 inches
Length: 13.8 inches
Weight: 13.75 lbs
Mounting: 4 slots, 5/16" each
Charge Algorithm: CAN BUS Programmed
Output Voltage: 200-450 volts (depending on model)
Input Voltage Range: 90-260 volts, 50-60 Hz
Efficiency: 92 percent
Power Factor: .98

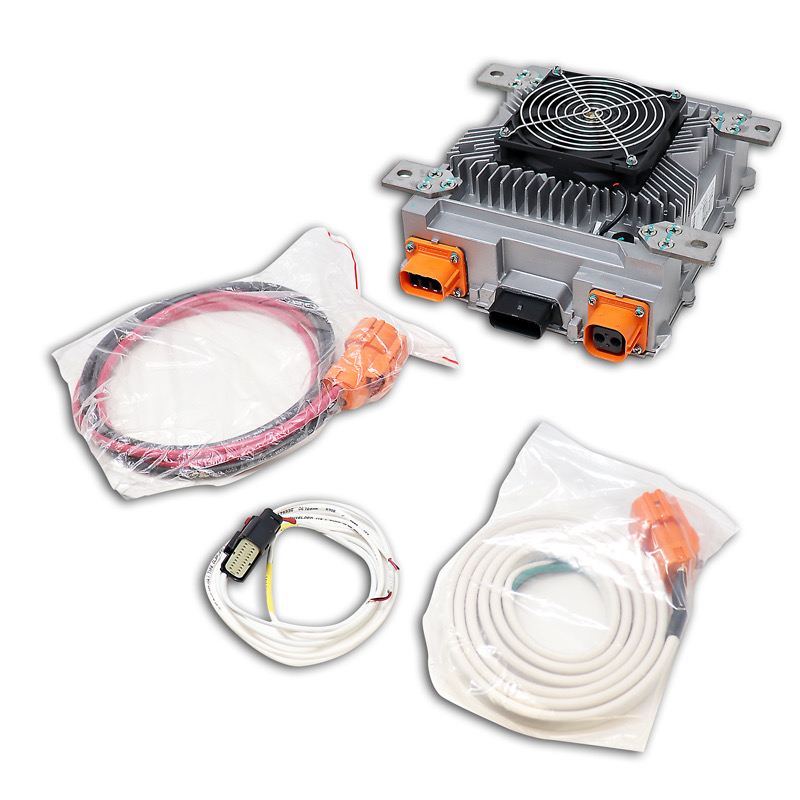

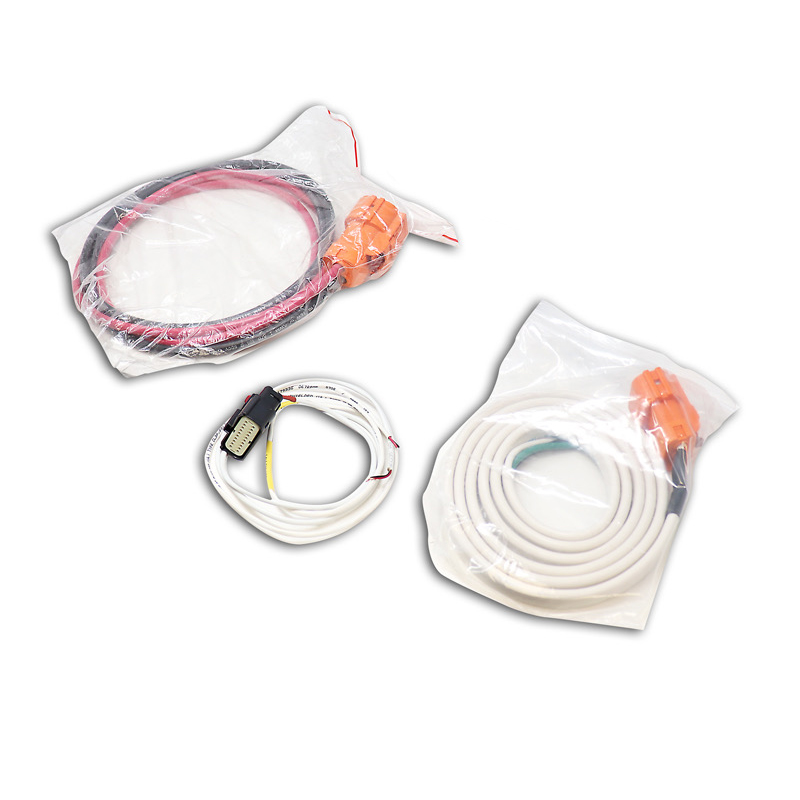

Connection In: #12-3 Cable w/Plug
Connection Out: #12-2 Cable w/Plug
Input Protection: Internally protected
Output Protection: Internally protected
Isolated: Yes, may be combined with other chargers
Display: Tri-color LED
Preset Cutoff Voltage: Yes
Adjustable Cutoff Voltage: Yes, via CAN BUS programming
Adjustable Cutoff Time: Yes, via CAN BUS programming
Adjustable Current: Yes, via CAN BUS programming
Thermal Cutoff Point: 80C reduced output, 85C shutdown
Thermal Cooling: Thermostat controlled, variable speed fan
Reverse Polarity Protection: Yes
Warranty Period: One year
6.6KW On-board Charger Specification Manual V1.0 - 2021.1
