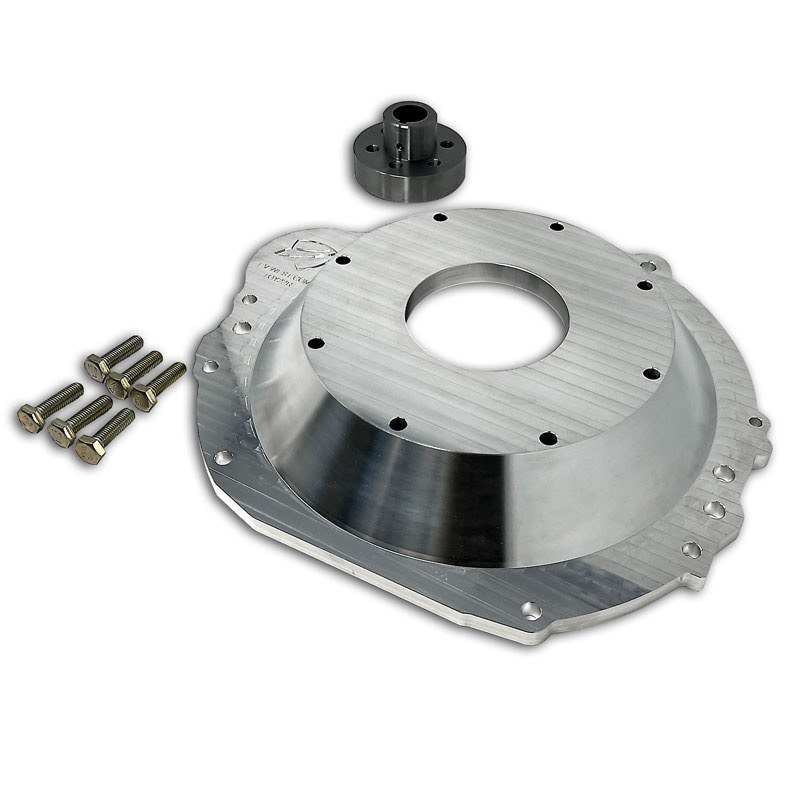

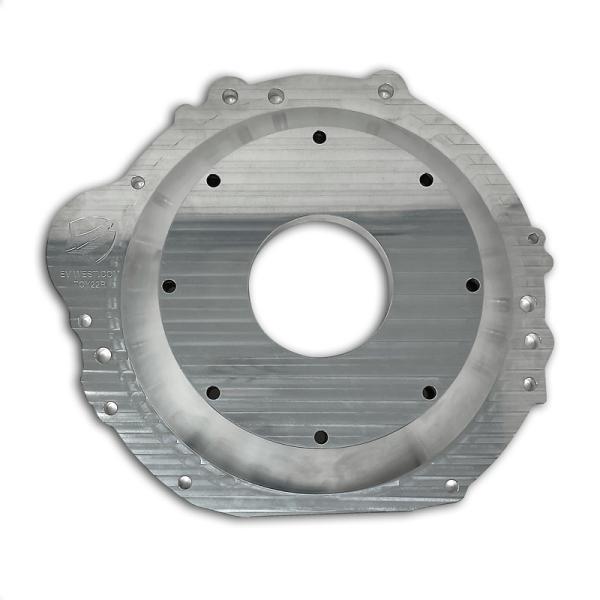

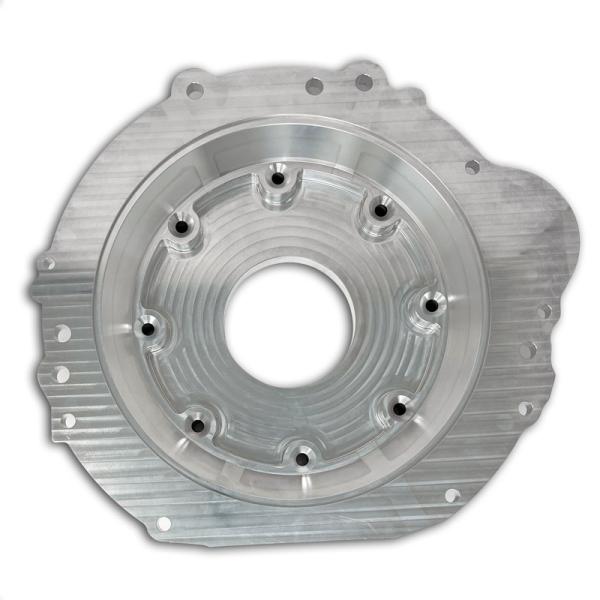

This beautiful adapter will fit most 9 inch motors, Hyper9, ADC, HPEVS AC-35, Dual AC-35, AC-50, AC-51 and NEMA B Face. Built of 6061-T6 billet aluminum it comes with mounting hardware and coupler.
This fits the following vehicles that have the 22RE motor: 1981 Toyota Corona, 1981-1988 Toyota Hilux, 1981-1984 Toyota Celica, 1981-1995 Toyota Pickup, 1984 Toyota 4Runner
This coupler is designed for the post 1985 22R/ RE flywheels that have a 1.648" center bore. If you have the earlier 20R or pre 1985 22R that will have a 1.510" bore and the coupler will not work.
If you have questions or concerns in regards to fitment, please email a photo of your bell-housing to sales@evwest.com to confirm.
NOTE:All couplers are machined to be an interference fit and must be heated on a hot plate to 600 degrees prior to installation on the motor shaft.
NOTE: If you are using this adapter with a Netgain Hyper 9 motor you must install a Hyper 9 spacer ring before installing the motor shaft coupler. If your purchased the motor through EV West one is included with the motor. If you have purchased it elsewhere you can purchase one here HERE
Torque specs are as follows:
Motor to Motor Adapter Plate (3/8) Aluminum: 15 lb/ft
Motor Adapter Plate to Bell Housing (3/8) Stainless Steel: 13 lb/ft
Dimensional Drawing to confirm this adapter fits your vehicle
The flywheel bolt for this adapter hard to find. It's a factory Toyota bolt that is M11 (not M10 or M12). Here is a link to the M11 flywheel bolt.
