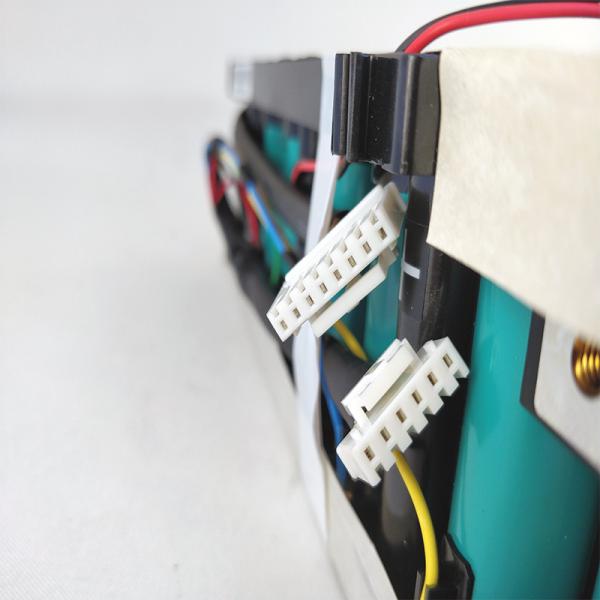

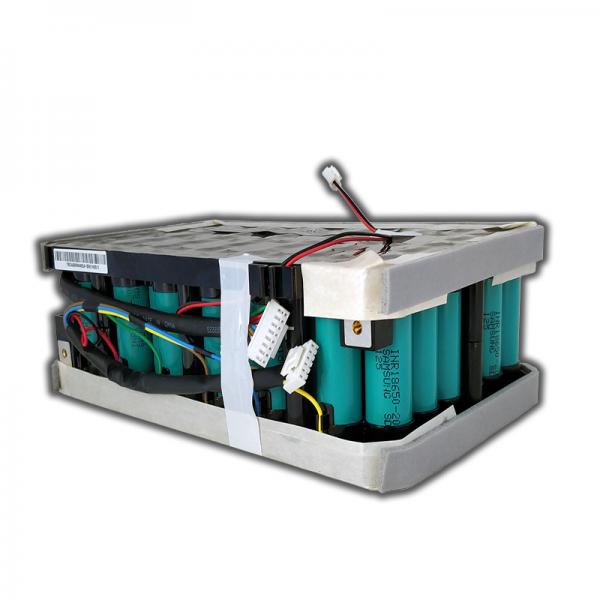

This Samsung pre-engineered battery module is great for karting projects, ebikes, and small hobbiest builds.
EV West is not a an authorized Samsung Dealer.
EV West is not a an authorized Samsung Dealer. All items are considered used. This Samsung pre-engineered battery module is great for high current low voltage requirements, making it great for karting projects, ebikes, and small hobbiest builds. The INR battery has one of the highest single cell current ratings of 22A continuous, so the modules can produce a staggering 132 Amps of continuous power!! These modules are brand new and sold in factory packaging. Battery capacity is 505Wh.

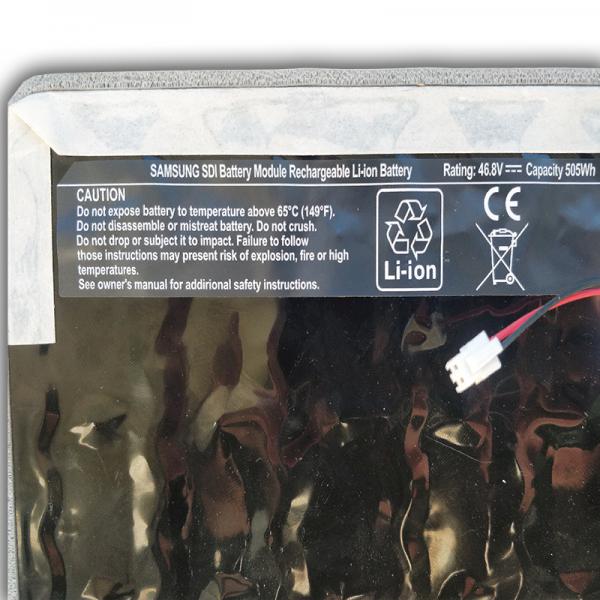

Not eligable for International shipments. Height: 2.75 inches Width: 5.5 inches Length: 9.4 inches Weight: 8lbs Nominal Capacity: 505 Wh Nominal Voltage: 46.8 Volts Voltage Range: 42.9-54.6 Volts Cell Arrangement: 6P13S (78 Cells) Connection Out: JST 2.0 Continuous Current: 132 A Terminal Size: M4 Screw Warranty Period: 3 months Click here for a for this product BMS Click here for JST XH mating connector kit. Click Here for Samsung INR Module Schematic Click Here for Samsung INR Data Sheet Click Here for CAD STEP File Right click and choose Save Link As...
