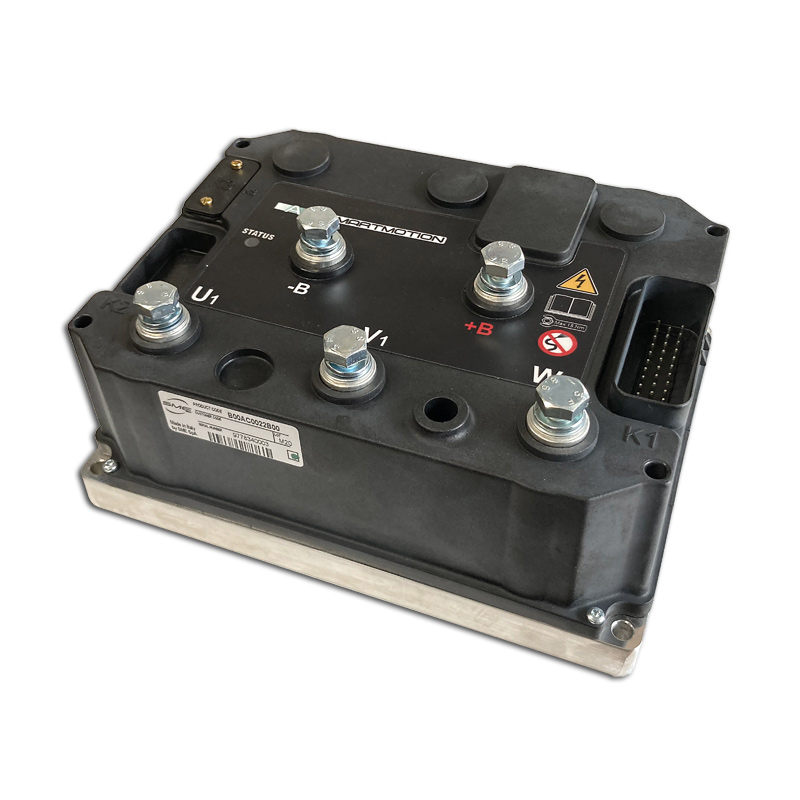

NetGain SME AC-X1 Inverter - SRIPM Motor Inverter for Hyper9 Systems

$2,150.00
 In stock

Description:

Equipped with the latest technology in power electronics, our HyPer-Drive X1 ™ Controller can drive SRIPM motors in a wide range of applications up to 85kw peak power. The X1 is the only controller capable of powering the SRIPM technology in our HyPer 9 ™ Motor. The X1 can also be configured to control most AC Induction and Permanent Magnet motors.

This Compact unit serves two functions:

Controller - We refer to the Low Voltage Logic Module as the Controller. The K1 Wire Harness receives and transmits data for Throttle, Brake, Direction, Power Limits, Rotor Position, etc. See the X1 Technical Manual for more capabilities and specifications. See the HyPer 9 ™ System User Manual for default wiring and programming.

Inverter - We refer to the High Voltage Power Module as the Inverter. The DC Supply connects to B+ & B- terminals where it is inverted to 3 Phase AC for the U,V, & W Terminals to drive the HyPer Motor. This Inverter can also be programmed as a Slave to an external Control Unit, which takes responsibility from the Controller's Logic Module.

DC supply voltage from 62V to 130V and current up to 750A Peak
Up to 50% higher power density than direct competitors (Superior power in half the footprint)
Field Oriented Control algorithm optimized specifically for Synchronous Reluctance Internal Permanent Magnet motors
Fully customizable I/O
IP65 protection - Robust and Reliable
Extensive program customization from PC with Smartview Software
Optional Liquid Cooling


*Harness and Display sold separately.

Max Current: 750 Amps With Liquid Cooling (2 Min. Max)
Rated Power: 38 KW
Input Voltage: 62-132 Volts
Length: 210 mm
Width: 160 mm
Height: 80 mm
Weight: 9 Lbs
Precharge Circuit: Built In
Computer Interface: Serial Port DB9
Data Logging Capabilities: Yes
Tach Output: Yes, via CAN Bus
Firmware Upgradable: Yes
Internal Contactor: No
Thermal Derating: Yes
Reverse Capability: Yes
Adjustable Acceleration (Slew Rate): Yes
Programmable Inputs: Yes
Programmable Outputs: Yes
Terminal Stud Size: M8
RPM Sensor: Internal
Max Efficiency: 92%
Thermal Cooling: Yes, Chill Plate Sold Separately
Warranty Period: 1 Year
