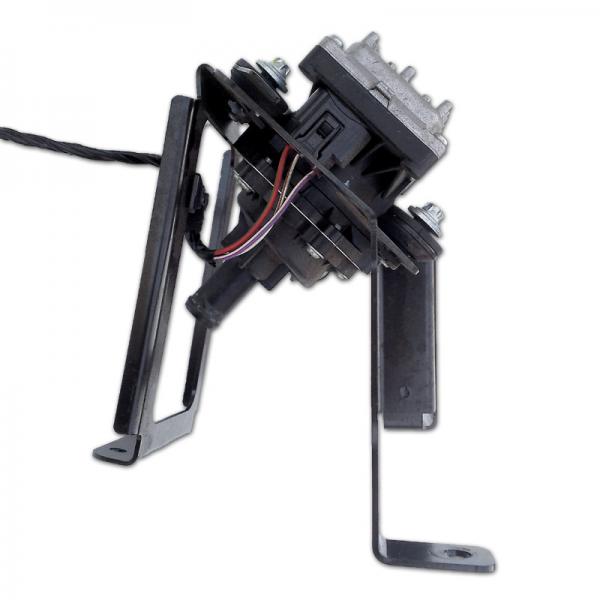

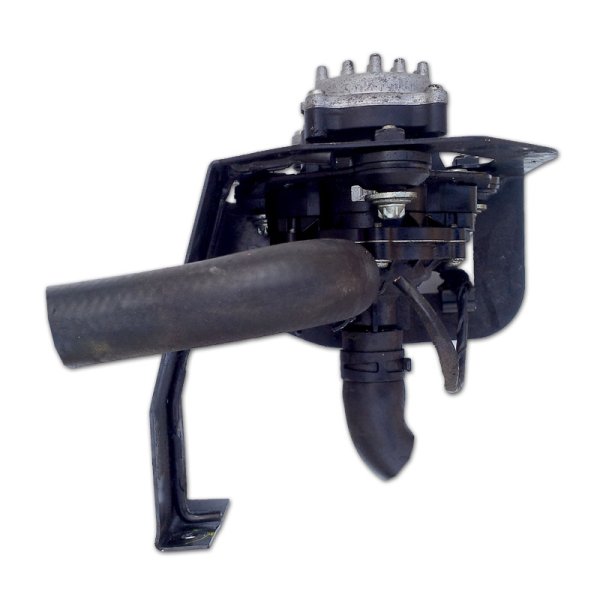

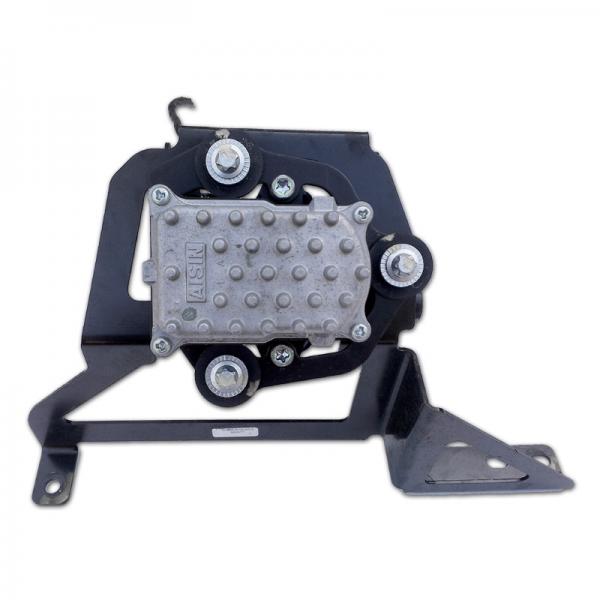

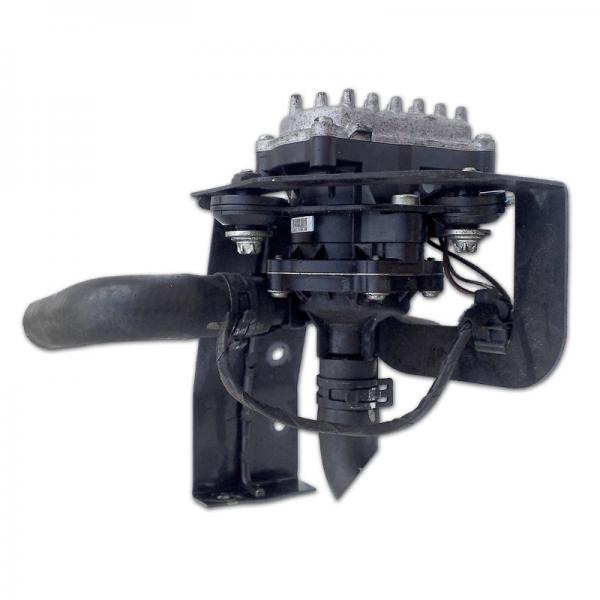

Used Coolant/Water Pump from Electric Smart Car

This OEM pump has been used for less than 5000 miles, and still has a long life remaining of reliable performance. Components include a high-quality gasket and an OEM mounting bracket which allows for easy installation on your conversion. It also comes with a plug with a minimum 4 inches of wire. It is phosphate coated to prevent rust and the knurled castings eliminate bearing movement and ensure longer bearing life. These pumps run at 12 volts. The pumps won't run without coolant, and must be primed with liquid before they will operate. Make sure to mount them at a low spot in your coolant system loop to avoid trapped air pockets. Performance is best with the inelt pointing upward.

Voltage: 12 Volts DC
Inlet pipe: 5/8 Inches
Outlet pipe: 5/8 Inches
Weight: 2.5 Pounds
Height: 5 Inches
Width: 5 Inches
Depth: 4 Inches


*OEM bracket increases overall dimensions

These pumps come with one of the following two plugs. Please choose the appropriate schematic.

Plug #1
Red/Green: 12 Volts +
Purple/White: 12 Volts -
White/Brown: PWM circuit (untested, not known to work)


Plug #2
Red/Yellow: 12 Volts +
Brown: 12 Volts -
White/Brown: PWM circuit (untested, not known to work)
