Volkswagen VW Type 3 EV Conversion Kit, Notchback, Squareback, Fastback, AC Motor, Regen Braking, 1961-1973

Model: EVW-NTCH-KIT
Complete EV conversion kit for the VW Type 3 Notchback, Squareback and Fastback, 1961-1973. Hyper 9 AC motor, regen braking, Tesla batteries, about 90 miles.
  • Model
  • EVW-NTCH-KIT
$19,958.00
 In stock

Description:

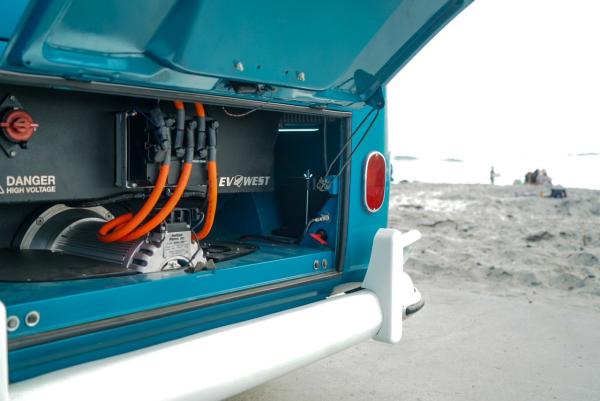

The EV West VW Type 3 Kit fits all three Type 3 body styles: the Notchback, the Squareback (Variant) and the Fastback, 1961-1973. All three share the same floor pan, transaxle and rear engine bay, so the same kit installs on each car.

This is a complete kit. The components were picked to be the best available for the Type 3, and the fit and finish have been refined. It comes with everything you need, down to the heat shrink tubing and fuse holders, including the front and rear battery enclosures. Expect about 90 miles of driving range and a full charge in a little under 8 hours. The motor delivers about 173 lb-ft of instant torque and tops out at 100 mph, so it is fun to drive.

This kit contains the following:

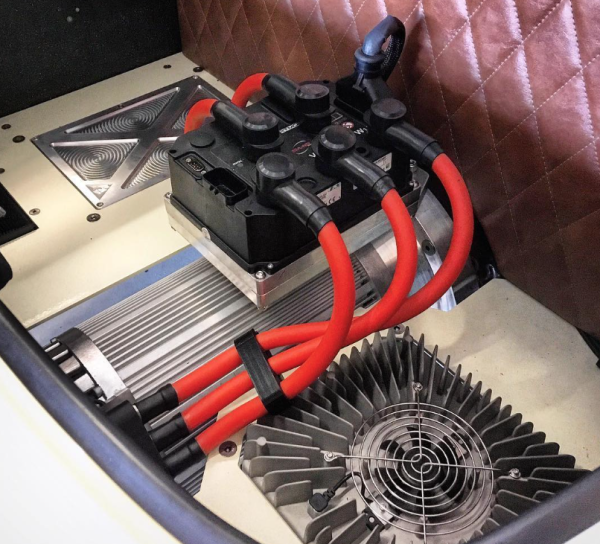

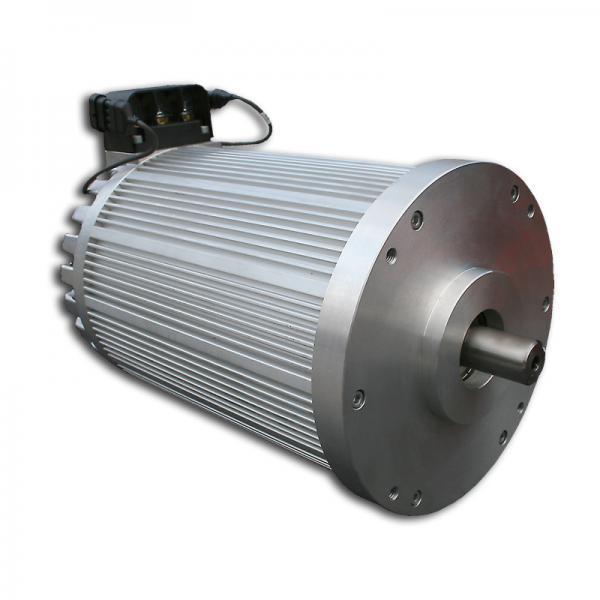

Motor: NetGain HyPer9 120V Motor

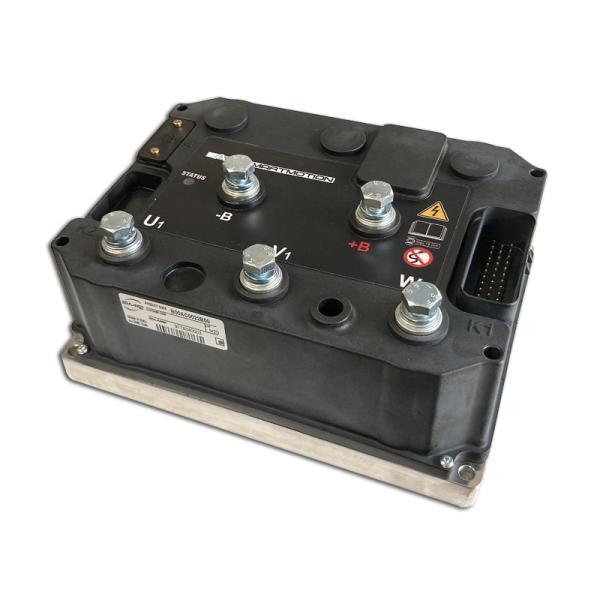

Controller: SME AC-X1 760 Amp, 120 Volt

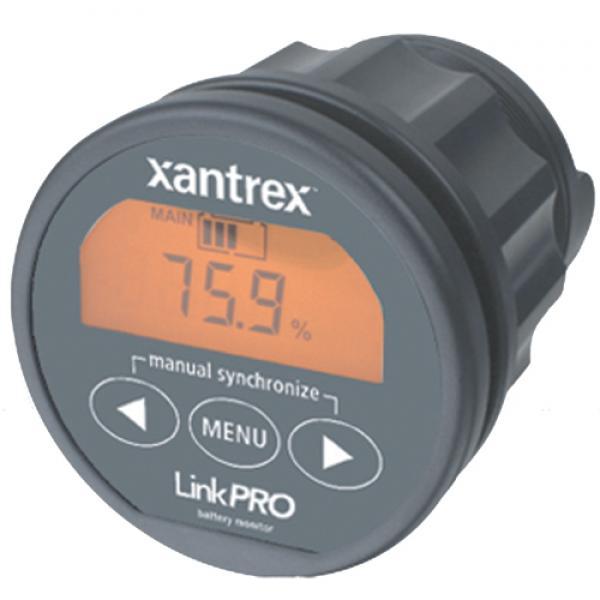

Instrumentation: Xantrex Link Pro

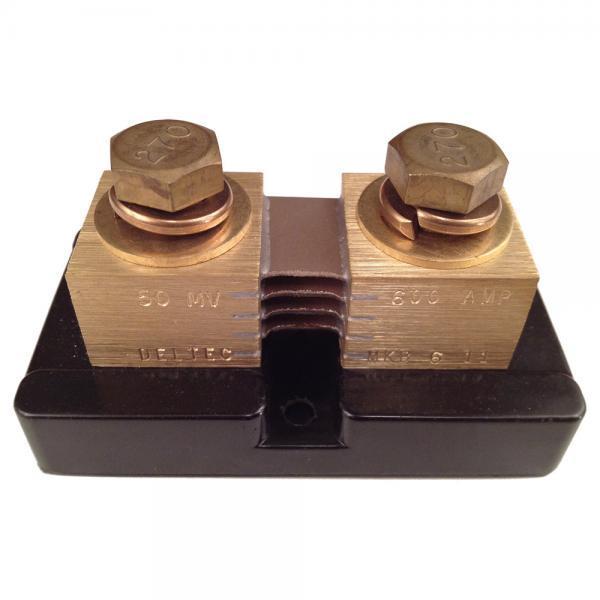

Shunt: Deltec 600 Amp
Transmission Adapter Kit: Billet Aluminum
Charger: Thunderstruck 2500 with EVCC

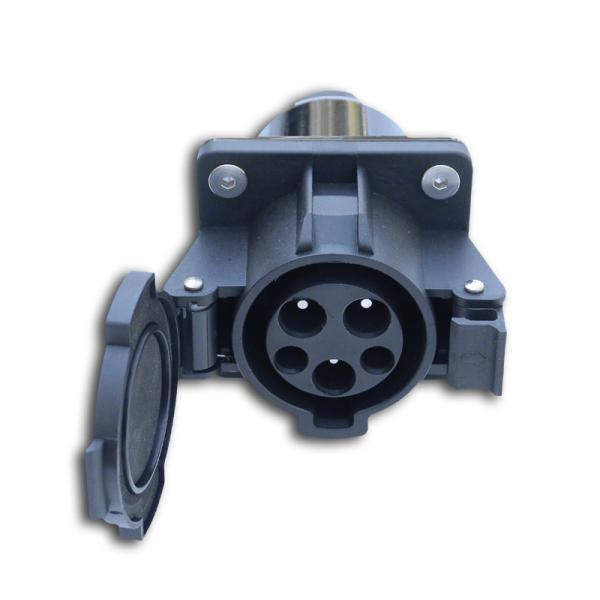

J1772 Charge: J1772 Inlet

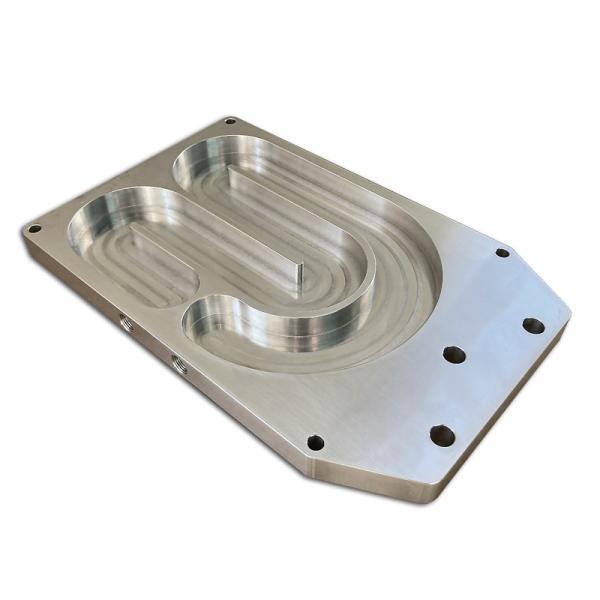

Chill Plate: EV West H9 VW Chill Plate

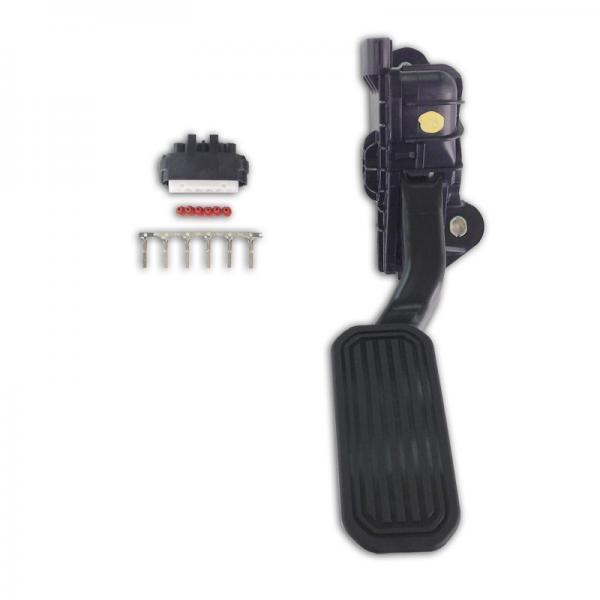

Throttle Control: Toyota Prius Hall Effect
DC/DC Converter: Elcon DC/DC Converter 1000W
Contactor Box: Plastic, Splash Proof
Traction Pack Cable: 50 Feet of 2/0 Double Insulated
Battery Type: Tesla Model S 22.5V 5.3KwH
Battery Voltage: 126 Volts, 5 Cells
Battery Capacity: 26.5 kWh

V West VW conversions have received good press online:

Jalopnik.com Article
BBC Autos Article
San Diego Loves Green Article
