EV West High Voltage High Current Fuse Holder Size 6

Model: EVW-FH6
EV West Fuse Holder Size 6 are glass-filled polycarbonate and laminated phenolic insulator blocks designed to accommodate bolt-in fuses.
  • Model
  • EVW-FH6
$64.00
 In stock
Product Overview

Description:

EV West Fuse Holder Size 6 are glass-filled polycarbonate and laminated phenolic insulator blocks designed to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc plated. They are rated up to 600 volts and are extremely well built. These do not have cover protection, so they should only be mounted in a protected connection box.

Voltage Rating: 600 Volts AC/DC
Post Stud Size: M12
Post Center to Center: 4.60 Inches
Height: 3.56 Inches
Length: 6.00 Inches
Width: 1.38 Inches
UL Rated: Yes
Warranty Period: One year

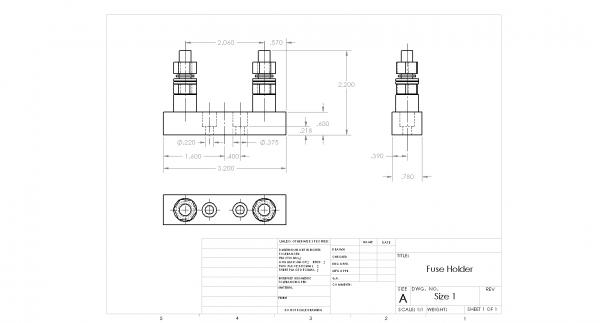

pdf Click Here for Fuseholder Manufacturer's Dimensional Drawing

pdf Click Here for EV West EV Fuse Block Data Sheet

pdf Click Here for EV West EV Fuses Data Sheet
