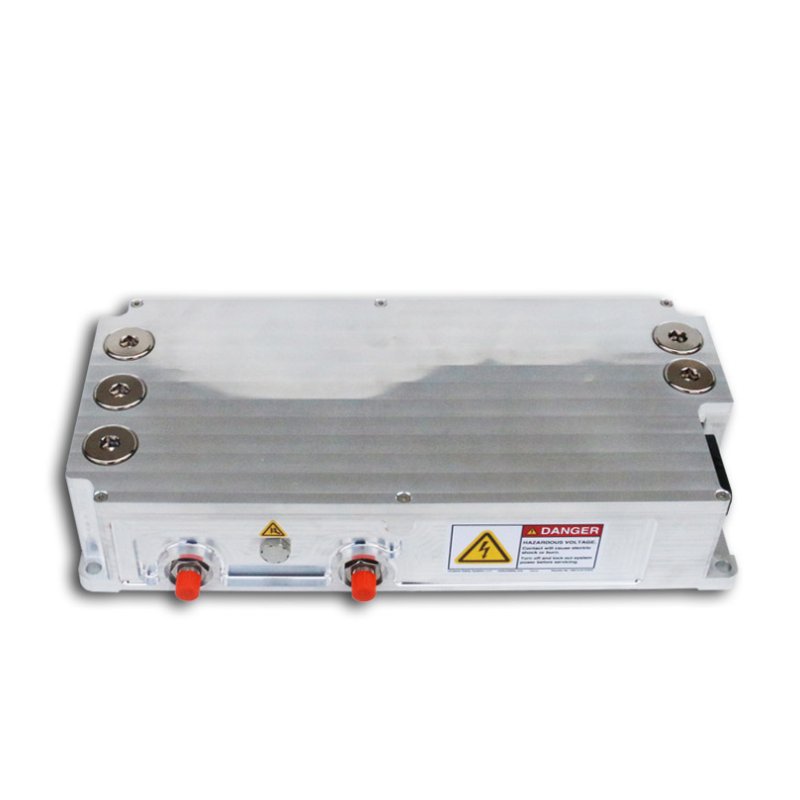

Cascadia Rinehart PM150DX/DZ 150KW AC Motor Controller

Model: Controller

The Rinehart Motion Systems (RMS) AC Traction Controllers are designed for on and off road Electric (EV) or Hybrid Electric (HEV) applications.

This product is no longer available through EV West. This page is up

  • Model
  • Controller
$9,360.00
 Currently out of Stock
Notify me when in stock
Product Overview

Description:

This product is no longer available through EV West. This page is up solely for reference purposes. Please contact Cascadia Motion to order directly.

The Rinehart Motion Systems (RMS) AC Traction Controllers are designed for on and off road Electric (EV) or Hybrid Electric (HEV) applications. The PM-Series family is typically the lightest and smallest inverter for its power due to its high heat flux thermal design approach. Used in automotive, commercial vehicles, motorsports and military vehicle traction applications.

PM150DX - 450Arms continuous, 160 - 360VDC
PM150DZ - 250Arms continuous, 300 - 720VDC

Motor Controls:
AC Induction and Permanent Magnet motor control algorithms.

Electric Motors Supported by the RMS Traction Inverter:
Siemens/Ford Ranger Induction Motor
Remy HVH 250
Remy HVH410
MES-DEA 200-250 Induction Motor
EVO AF-140 4T
EVO AF-140 3T
EVO AF-130 3T
EVO AF-230 6T/ AF-130 6T
EVO AF-130 3T 5x Resolver
EVO AF-130 6T 5x Resolver
EVO AF 130-5T
EVO AF‐140 4T 1/2 Stack
Yasa 750 PM Motor
Siemens 1PV5135-4WS28
Siemens 1PV5135-4WS14
Parker PM Motor
Remy HVH250HT Motor (In Development)
EVO AF-140-12 PM Motor
MES Induction motor
UQM-75 Motor
EMRAX PM Motor
Yasa 400 PM Motor w/ sin/cos encoder
Remy HVH410‐150S

Dimensions:
See Data Sheet

Approximate Weight:
24lbs or 10.7kgs

pdf PM Family Data Sheet
