Dual Tyco EV200 Contactor - 8000 Amps Max

  • Model
  • Dual EV200
$338.00
 In stock
Product Overview

Description:

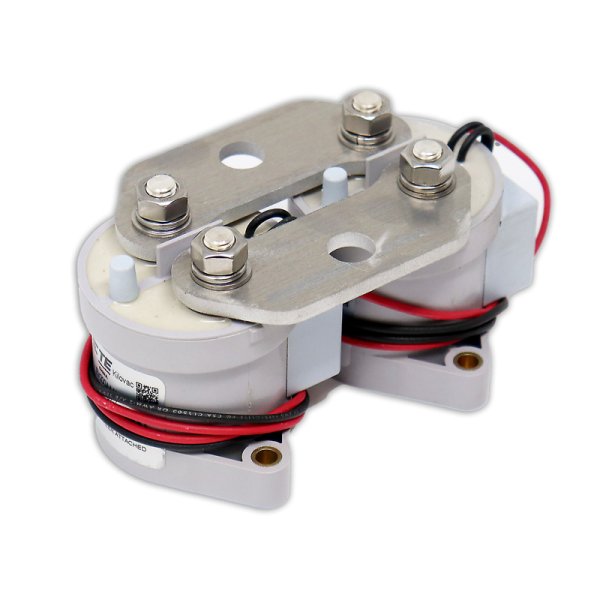

These Tyco EV200 are the workhorse of the EV industry. Our Dual Contactor Kit combines 2 of these contactors, and 2 plates of 6061 aluminum with 1/2 inch M13 holes for mounting ring terminals. This dual setup is rated at an astonishing 8000 peak amps, and can withstand 6000 amps for periods up to 60 seconds, and will handle a continuous 1000 amps. These are incredible numbers for a very affordable contactor.

Max Current Rating: 8000 Amps
Current Rating: 1000 Amps Continuous
Voltage Rating: 1000 Volts AC/DC
Length: 5.0 Inches
Width: 3.17 Inches
Height: 2.68 Inches
Type: SPST, Normally Open
Hermetically Sealed: Yes
Economizer: Yes
Warranty Period: One year





EV West Shield
