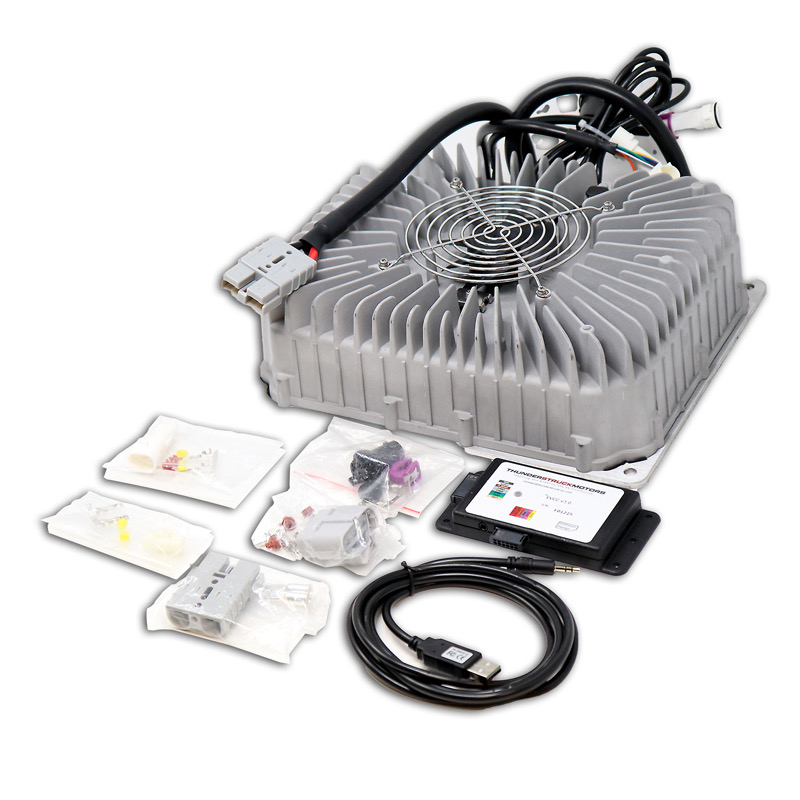

The Thunderstruck PFC-II 2500 is a versatile CAN controlled Charger that has user adjustable settings with the included EVCC (EV charge controller). This way if you change your battery pack configuration you do not need to buy a new charger or pay someone to reprogram it for you.
The EVCC integrates charger CAN Bus control and J1772 functionality in a simple to use, cost effective, and environmentally robust enclosure. Charge parameters such as maximum voltage, maximum current, and total charge time are configured, saved in nonvolatile memory, and used when charging to control a CAN enabled charger.
Input Voltage Range: 110 to 240 VAC
Output Current Range: 1A to 15A DC
Height: 3.5 inches
Width: 11 inches
Length: 9 inches
Charge Algorithm: Programmable via CAN Bus

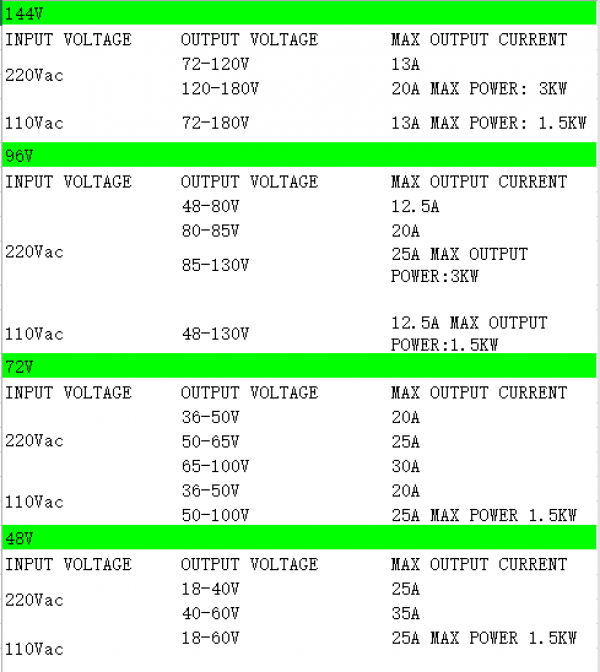

Output Voltage Range: 48-130 volts
Input Voltage Range: 110-220 volts, 50-60 Hz
Input Protection: Internally protected
Enclosure: Waterproof to IP66 Standards
Preset Cutoff Voltage: Set via CAN Bus
Software Compatibility: Windows XP, 7, Vista, Mac OS 10.7+
Thermal Cooling: Thermostat controlled, variable speed fan
Warranty Period: One year
Click Here for EV Charge Controller Manual
Click Here for Charger Manual
Click Here for Mac Software
Click Here for Windows Software
Click Here for CAN Bus Protocoll
