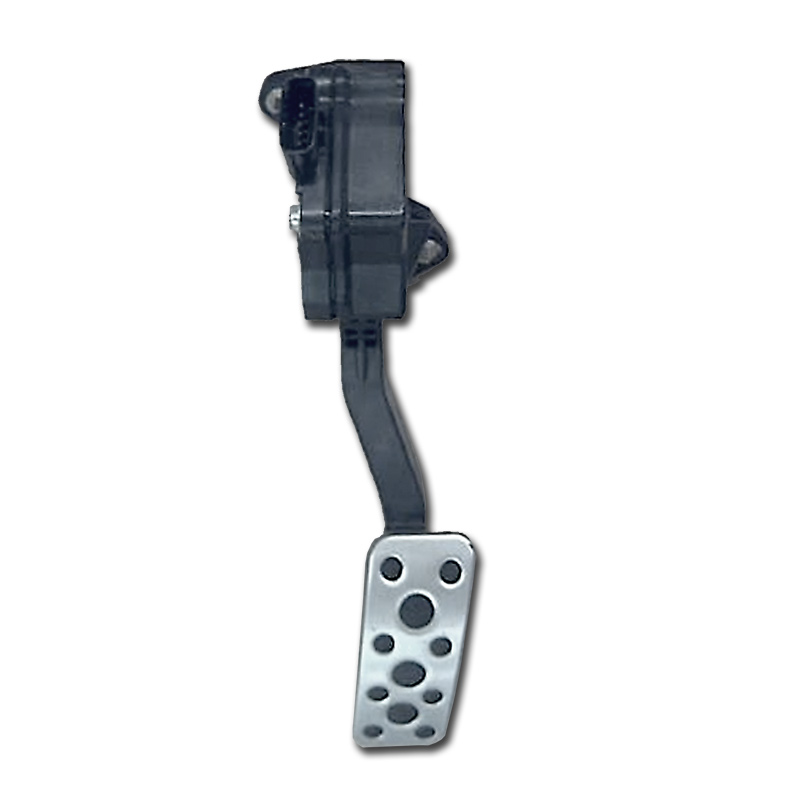

Subaru WRX STI Accelerator Pedal - Hall Effect With Plug

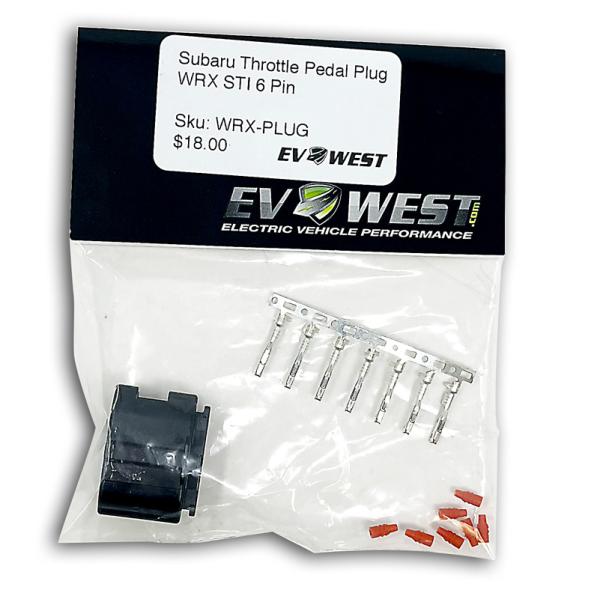

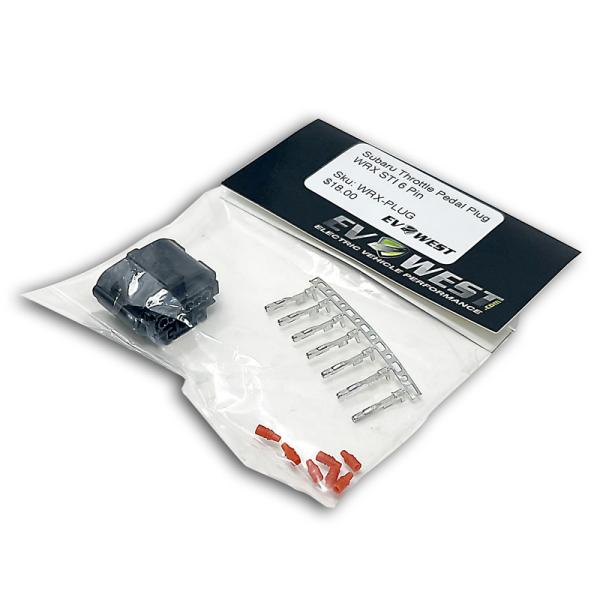

These Standard OE Motor accelerator pedal sensors indicate the position by converting pedal movement and position into an electrical 0-5V signal. Pedal is used, but in good condition and has a 2 year warranty. Comes with plug, seals and pins. This is used in Subaru WRX 2008-2014.

Made of high quality materials which gives out maximum durability. This pedal has a good feel to it and can give even the oldest of vehicles a new car feel with this drive by wire assembly.

Pin 6 - Wiper 1
Pin 5 - Ground
Pin 4 - 5v +
Pin 3 - Wiper 2
Pin 2 - Ground
Pin 1 - 5v +

Voltage Range - Channel 1: 0.66-3.30 Volts
Voltage Range - Channel 2: 0.66-3.30 Volts
