This product is no longer available through EV West. This page is up solely for reference purposes. Please contact sales@evwest.com for more details or you can contact Manzanita Micro to order directly.

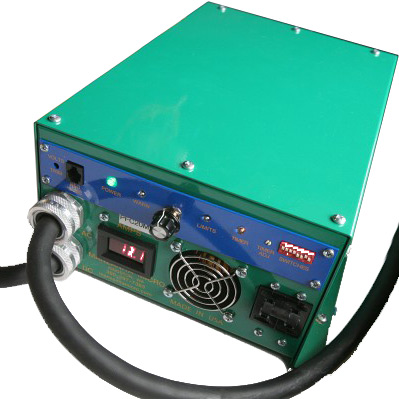

The PFC-30M is designed to charge any battery pack from 12 volts to 360 volts nominal (14.4 to 450 peak.) It is power factor corrected and designed for 30 amps in, 40 amps out.
One of the key features of this charger is it's ability to operate on any voltage from 60 to 240 volts AC at either 40 to 80 Hz. It also has a real time current adjustment knob which alllows you to squeeze the maximum amount of current from a variety of different circuits. To operate at full capacity, this charger needs a 30 Amp circuit.
Input Current Range: 0.2 to 30A AC
Output Current Range: 0 to 40A DC
Height: 5.5 inches
Width: 9.0 inches
Length: 13.0 inches
Weight: 17.2 lbs
Mounting: 4 holes, 5/16" each
Charge Algorithm: Constant Current/Constant Voltage
Output Voltage Range: 12-360 volts
Input Voltage Range: 60-240 volts, 40-80 Hz
Efficiency: 88% to 96% percent (varies by voltage)
Power Factor: .92 to .9997
Connection In: #10-3 Cable w/Plug
Connection Out: #8-3 Cable w/Plug
Input Protection: 30A 240V Breaker
Output Protection: 50A 450V Fuse
Isolated: No, negative input and output are connected
Display: Red LCD 3 digit, Amps drawn
Preset Cutoff Voltage: Yes
Adjustable Cutoff Voltage: Yes, via trim pot (20v/turn)
Adjustable Cutoff Time: Yes, adjustable 0-150 mins
Adjustable Current: Yes, via panel mount rotary knob
Thermal Cutoff Point: 170º F
Thermal Cooling: Thermostat controlled, variable speed fan
Reverse Polarity Protection: Yes
Warranty Period: One year, or 1000 hours (More Info Below)
