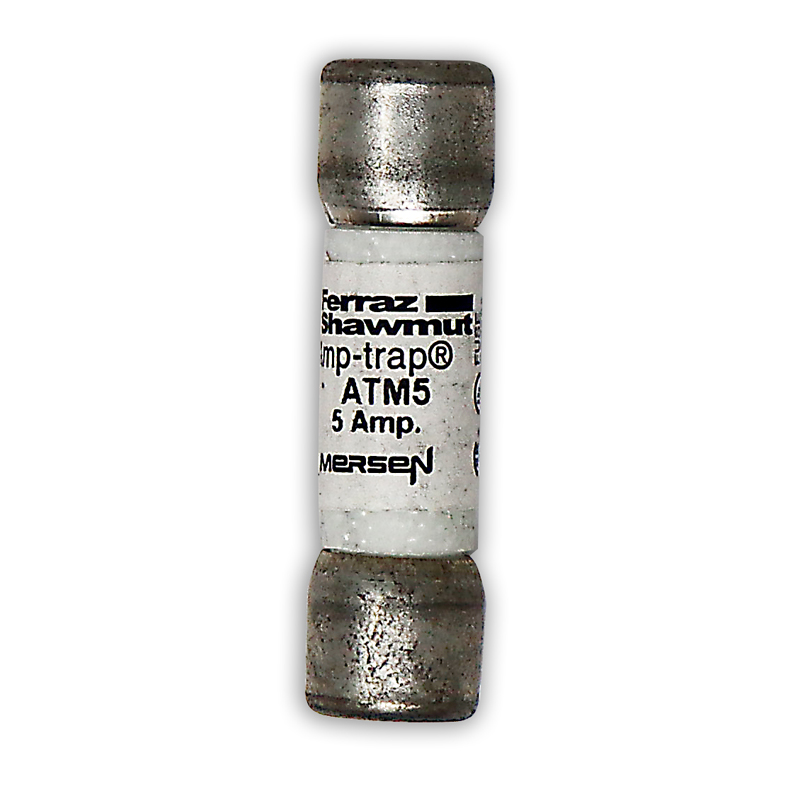

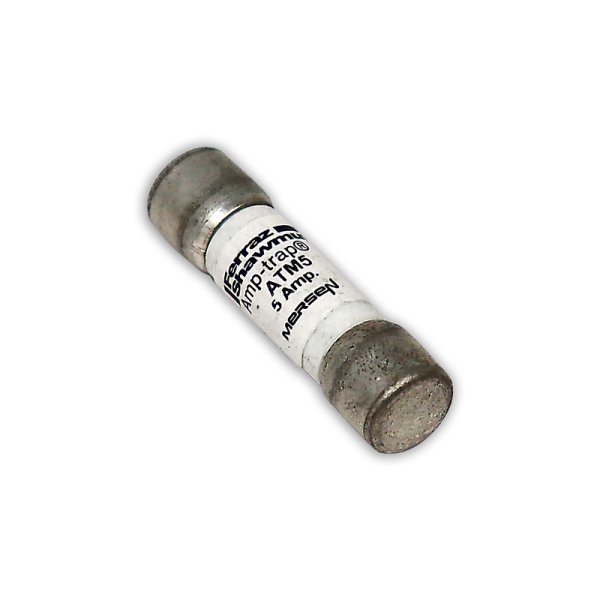

High Voltage Low Current EV Fuse 600 Volt 5 Amp ATM5

The ATM line of fuses from Ferraz Shawmut are reliable and versatile. They are rated for 600VDC and come in the Midget Standard size, so they fit our UltraSafe mounted holder and our inline holders. They are compact in size which is great for EV applications. These fast acting ATM fuses are able to withstand much higher inrush currents and tougher duty cycles. They are rated 30 Amp continuous, but have a special UL rating up to 50 Amps peak for high in rush components such as the capacitors in DC/DC Converters, vacuum pumps, power steering pumps and cabin heaters.

Current Rating: 5 Amps AC/DC
Voltage Rating: 600 Volts AC/DC
Breaking Amps: 100,000 AIC AC/DC
Length: 38 mm (1-1/2 inch)
Diameter: 10 mm (13/32 inch)
Type: Fast Acting
UL Listing: 248-14 File E33925
Warranty Period: One year



Click Here for Manufacturer Specification Sheet
