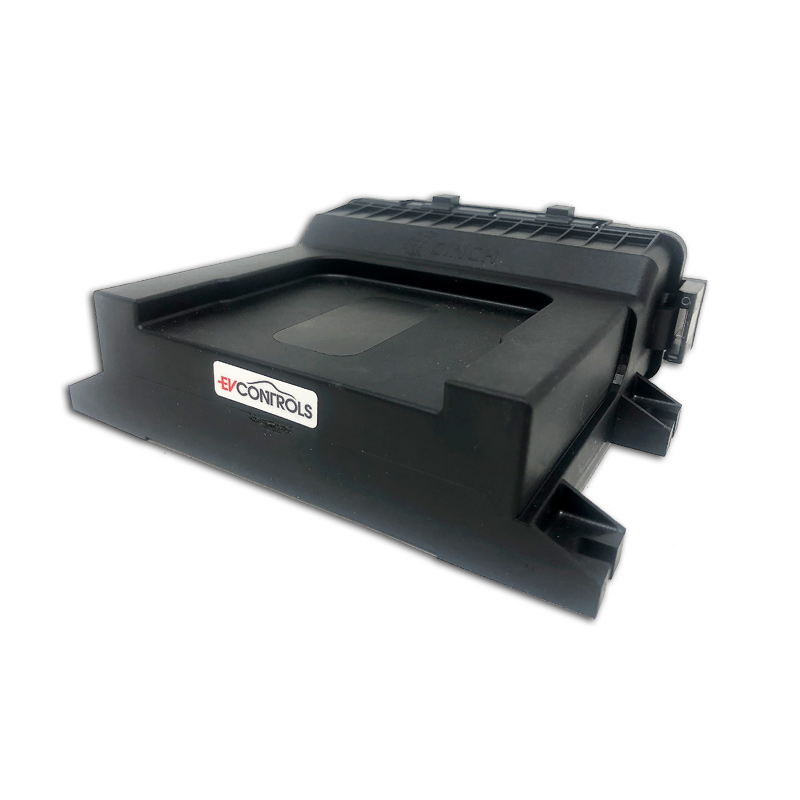

The T2C is a controller that allows you to install and control a Tesla Model S large or small drive unit in any vehicle. This can be used for electric vehicle conversions, or purpose built vehicles. The T2C allows pushbutton control of driving modes (Drive, neutral, reverse) and outputs to control brake/regen lights, reverse lights, contractors, cooling fan control and drive indicator lights. This unit is bluetooth and Wifi capable, and interfaces with the EV-Controls Dash app available in the apple app store now. This gives you access to the Tesla inverter drive modes, power settings, datalogging and other controls, along with all the other iPad features like navigation, music, web browser, e-mail etc.. The app allows you to change settings like max power, and regen levels on the fly. The unit’s firmware can be updated over the air when new features are added. It also includes data logging functionality and fault code readout capabilities.
Dimensions: 20 cm x 30 cm x 40 cm
Weight: 0.5 kg
Warranty Period: 1 Year

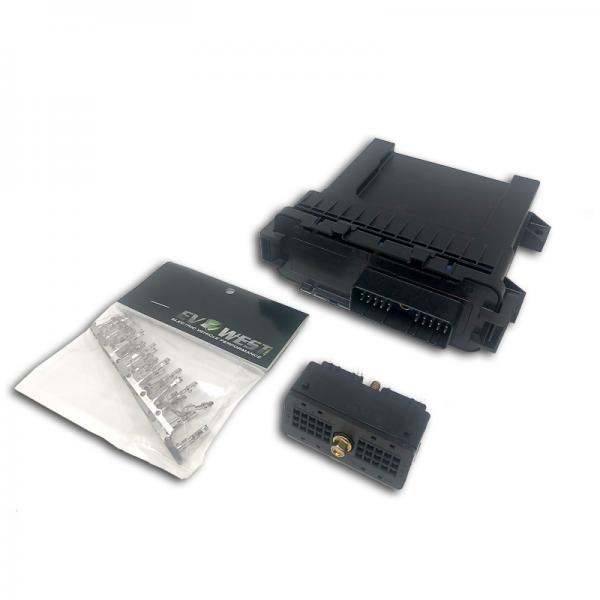

Pin and Connector Information:
Connector (30 Pin): 581 01 30 029
Small Pins (18-20 AWG): 425 00 00 872 (18-20 AWG)
Large Pins (16-18 AWG): 425 00 00 873 (14-18 AWG)
Click Here for EV Controls Manual
A Guide to Upgrading from T1C to T2C
SHS Connector Harness Assembly Manual
Click Here for T2C System Schematic
