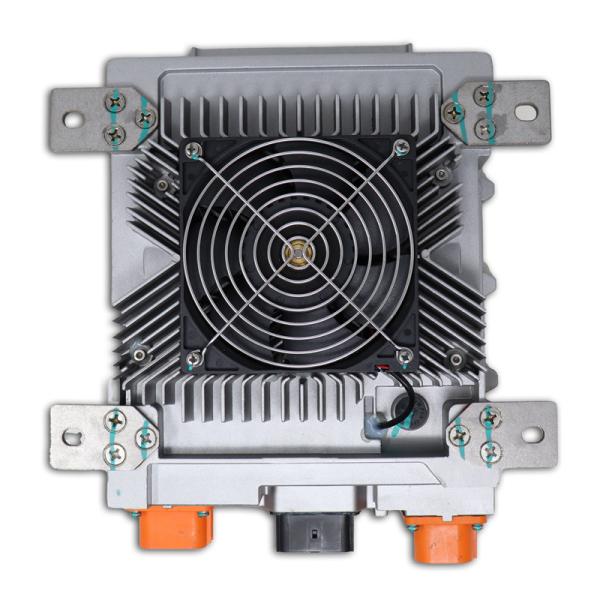

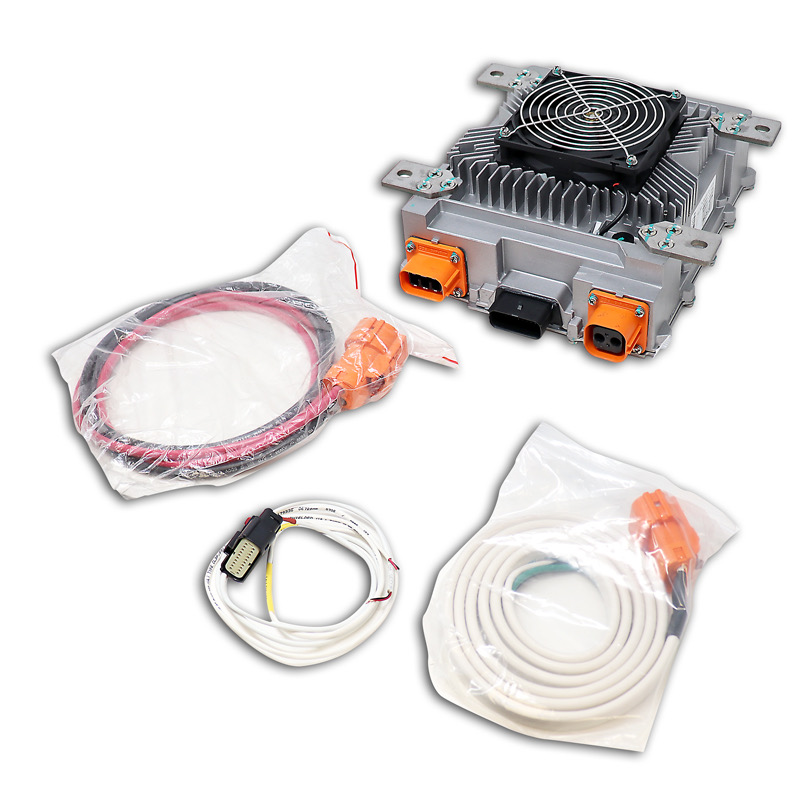

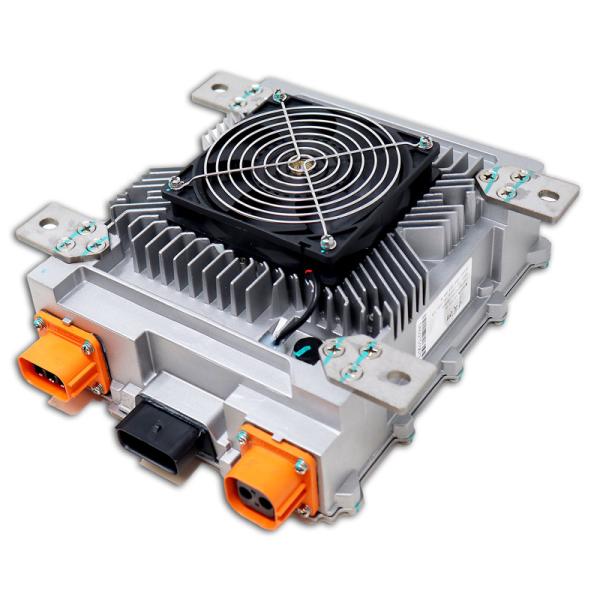

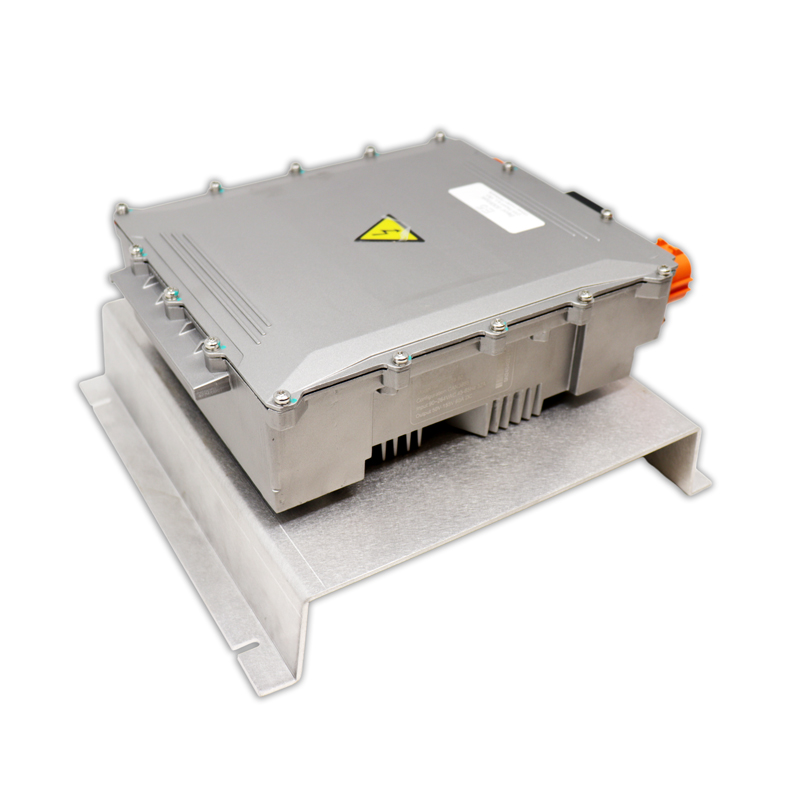

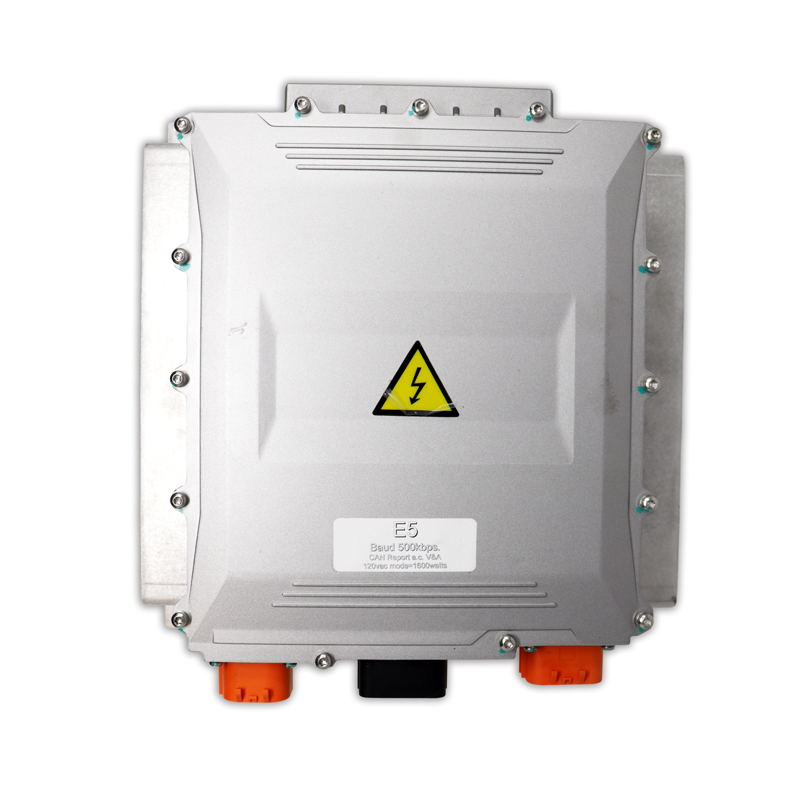

The UHF6600 is an excellent low cost solution to high voltage, medium amperage charging that comes in a sealed enclosure. Being one of the more versatile chargers by being able to accept both 110v and 220v, the UFC6600 is a great air cooled charging solution. These chargers have voltage specific windows to operate in, and the final charge voltage and current is set by a required CAN bus charge controller. Charge controller (EVCC) sold seperately. If you have any questions in regards to your traction pack voltage please reach out to sales@evwest.com or include the information in the notes when ordering.
Input Current Range: 0.2 to 32A AC
Output Current Range: 4A to 20A DC (depending on model)
Height: 6.2 inches
Width: 9.0 inches
Length: 13.8 inches
Weight: 13.75 lbs
Mounting: 4 slots, 5/16" each
Charge Algorithm: CAN BUS Programmed
Output Voltage: 50-155 volts (depending on model)
Input Voltage Range: 90-260 volts, 50-60 Hz
Efficiency: 92 percent
Power Factor: .98

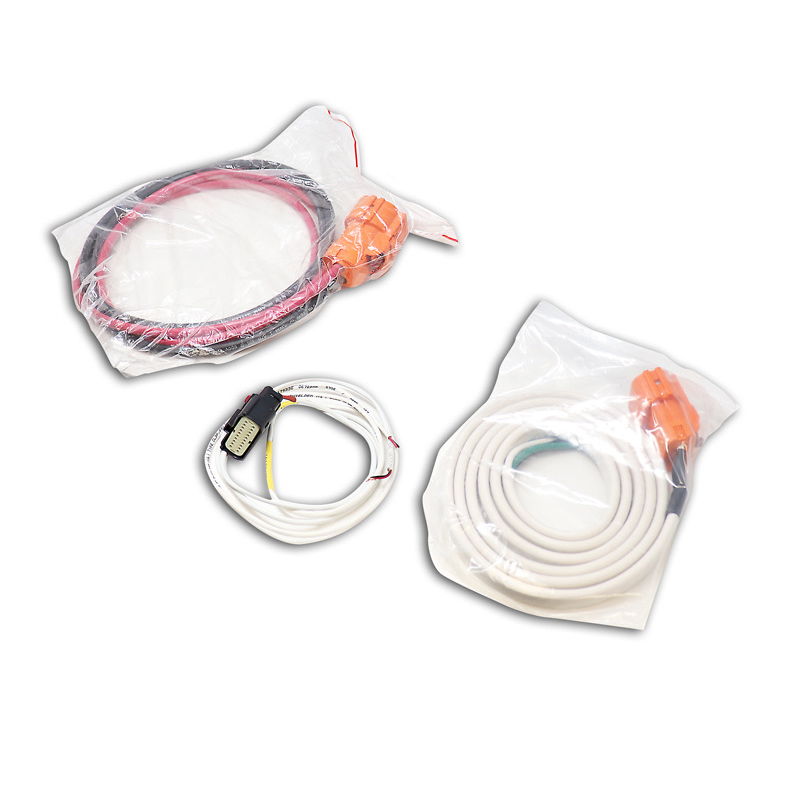

Connection In: #12-3 Cable w/Plug
Connection Out: #12-2 Cable w/Plug
Input Protection: Internally protected
Output Protection: Internally protected
Isolated: Yes, may be combined with other chargers
Display: Tri-color LED
Preset Cutoff Voltage: Yes
Adjustable Cutoff Voltage: Yes, via CAN BUS programming
Adjustable Cutoff Time: Yes, via CAN BUS programming
Adjustable Current: Yes, via CAN BUS programming
Thermal Cutoff Point: 80C reduced output, 85C shutdown
Thermal Cooling: Thermostat controlled, variable speed fan
Reverse Polarity Protection: Yes
Warranty Period: One year
6.6KW On-board Charger Specification Manual V1.0 - 2021.1
Click Here for CAN Bus Communication Specifications
For more information on the Electric Vehicle Charge Controller (EVCC) you can find it here: EVCC 3.0
If you are planning on using the Thunderstruck BMS MCU in your system you will not need to purchase an EVCC.You can find the MCU here: BMS MCU
