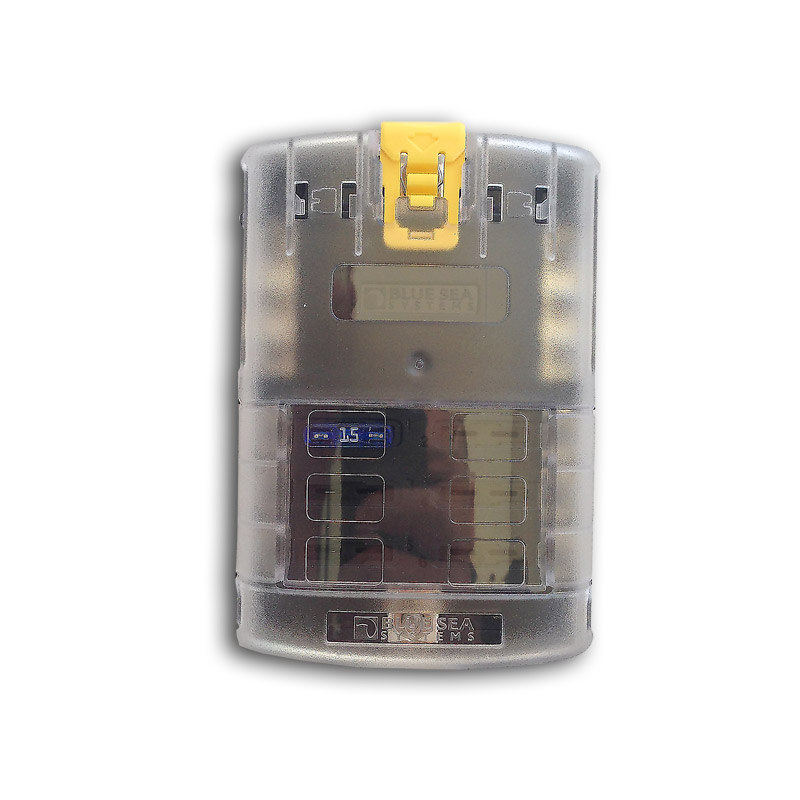

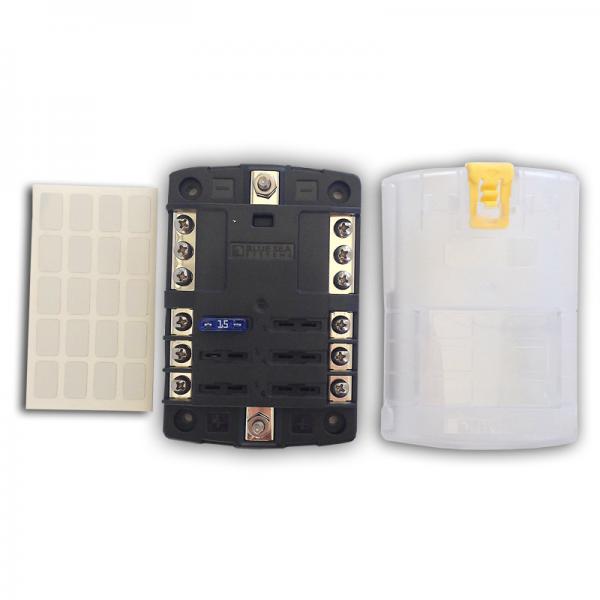

An insulating cover prevents contact with live circuits. Blocks have screw terminal connections. Rated 32 volts DC.

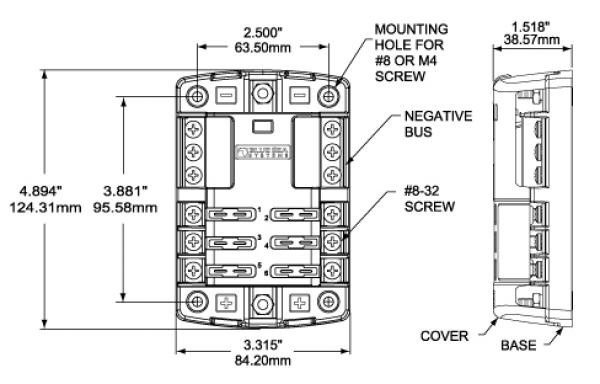

For Standard Fuses--Maximum 30 amps per fuse; maximum 100 amps per block. Mounting holes are 3/32 inch diameter.
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems Small Format Labels for circuit identification
Includes 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
