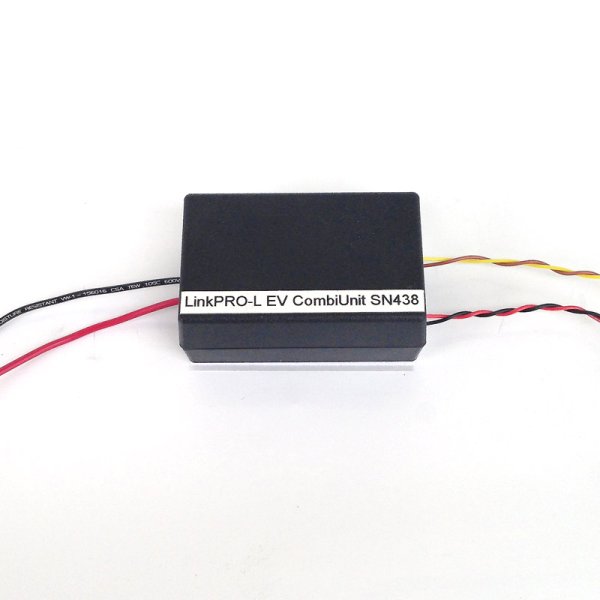

10-1 Pre-scaler for TBS Link Pro Voltage Over 165

Great pre-scaler to give your Xantrex LinkPro SOC meter accurate pack voltage & also has an integrated power supply, no external DC-DC required to drive the Xantrex Pro from a high voltage battery pack. We recommend you install a 2 amp fuse inline to the positive terminal of the pack.

Please specify what voltage you are running as there are two different versions: (LV)84V to 250V & (HV)150V to 350V. The HV version will go down to lower voltages but it is just not as accurate at reading pack voltage.

Click here for Directions.

CAUTION: Even with an isolated DC-DC, the meter output port is not isolated due to the shunt & meter - connections to the pack Outputs will be referenced to the traction pack (-)!
