NetGain Micro 880 - 48V - 600A System

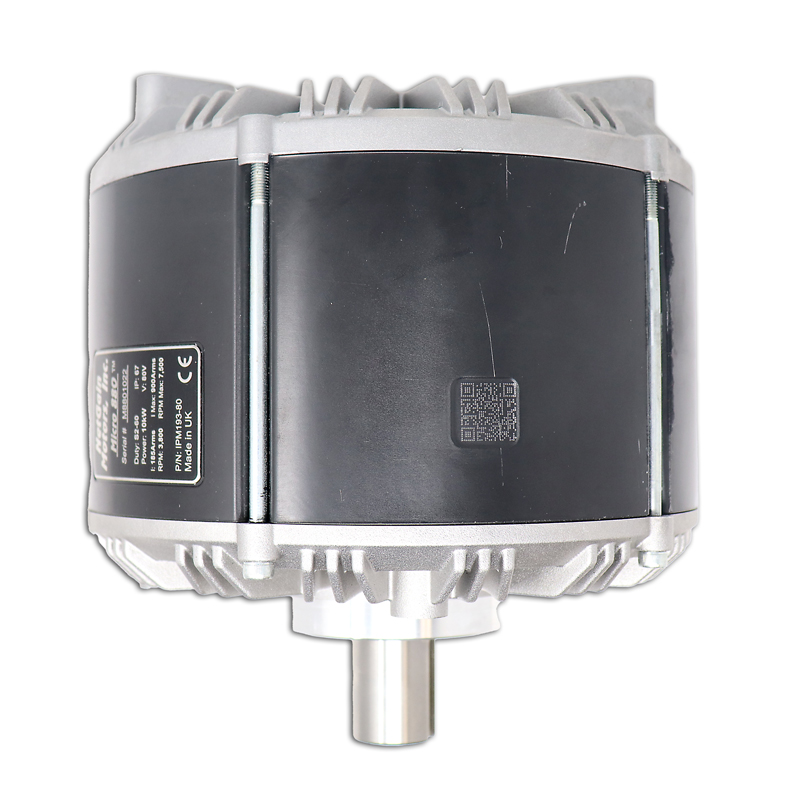

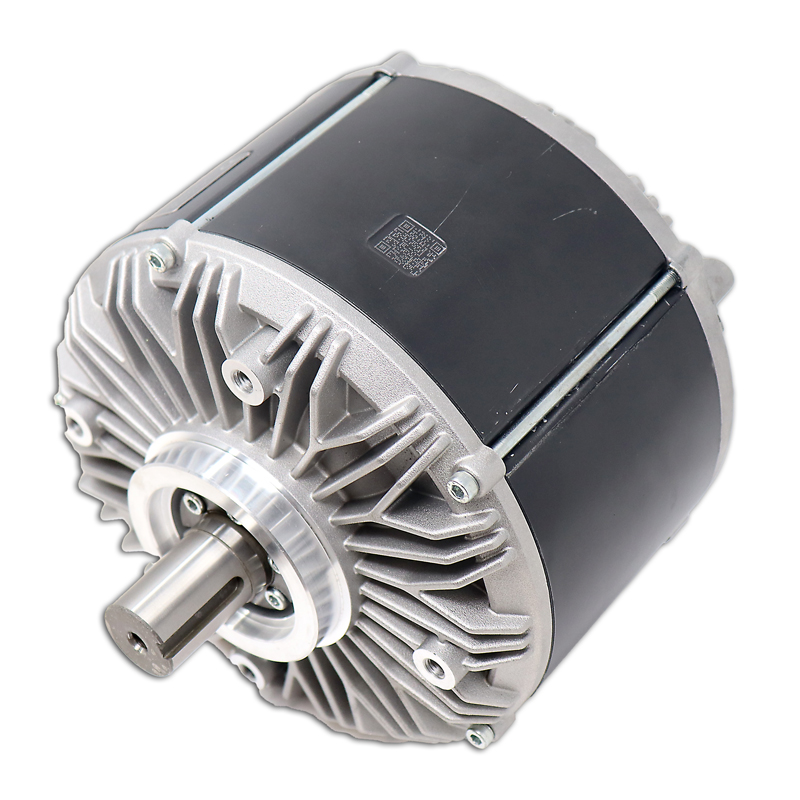

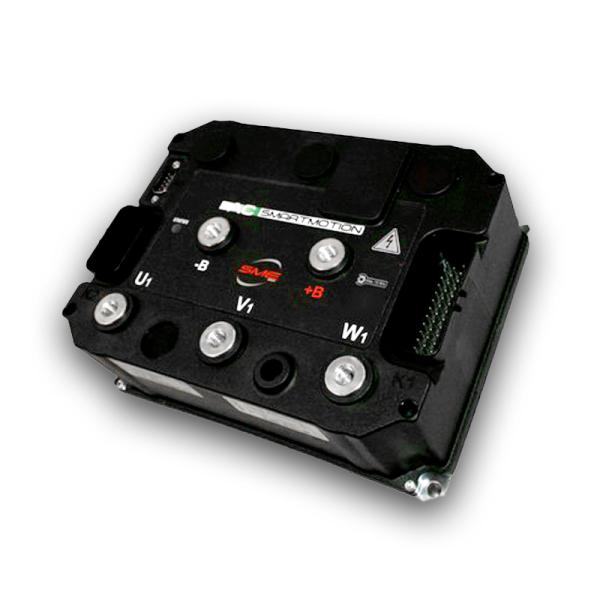

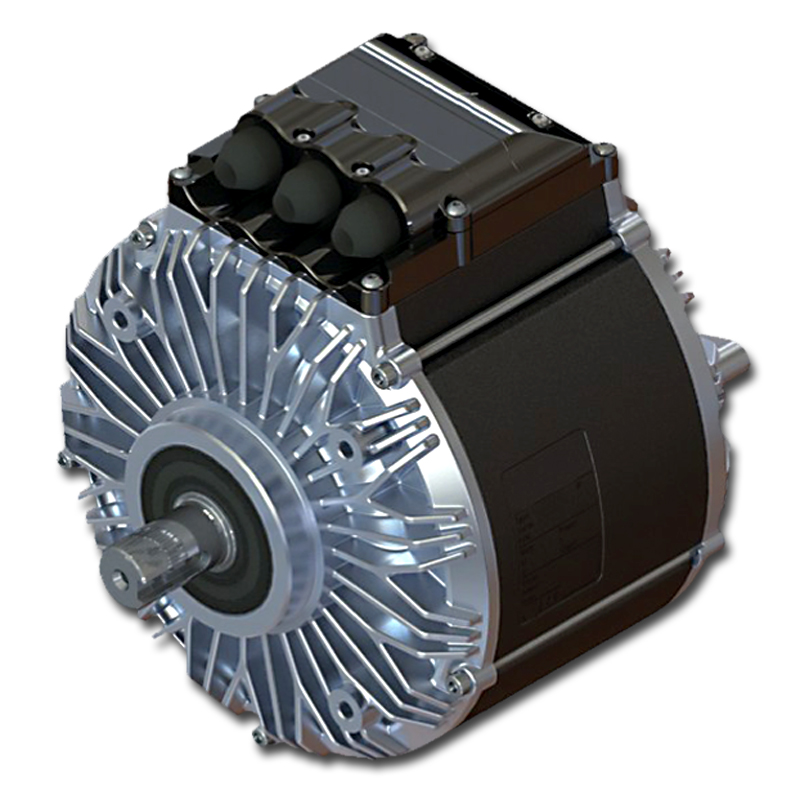

NetGain Micro 880 - 48V System - 24mm keyed Drive End Shaft. HyPer-Drive X48 Controller - 36/48V, 600A, Non-Isolated Logic. Includes Standard Ampseal Wire Harness and GV200QA-1 Contactor. This system Introduces the newest member of the NetGain Motors, Inc. product line. The Micro 8LTM is the ideal power-train for any light to mid-weight ORV. Combine multiple systems for heavy-weight and racing vehicles. Its potted stator provides outstanding reliability and thermal transfer. The standalone motor is rated at IP65 which can be increased to IP69k with optional shaft seal, or when mated to a sealed gearbox.

• Type: IPM
• Voltage: 80V
• Nominal Current: 250-750
• Arms Peak Efficiency: 95% S2-5min
• Power: 32kW
• Continuous Power: 10kW
• Max Speed: 8,000RPM
• Torque Peak: 98 lbs.-ft.

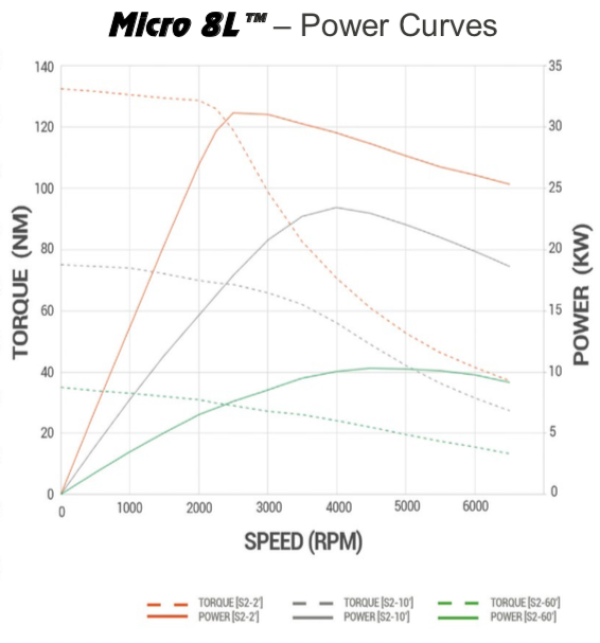

• Micro 8LTM – Efficiency (48V 650A)
• Motor Diameter: 8.19”
• Motor Length: 6.30”
• Motor Weight: 40 lbs.
• Shaft: Single Ended, Keyed
• Mounting: 152mm
• Insulation: 2000C
• Software: SmartView
• Delivery: Stock


Click Here for Motor Dimensional Drawing and Sales Sheet

Click Here for the AC X1 Isolated Datasheet

Click Here for the AC X1 Non Isolated Datasheet

Motor CAD File - STEP Format

Click Here for the Micro 880 Sales Sheet
