Lithium LG Chem Super Cells 1.6 kWh - JH3 63Ah 7S High Power Battery Module - For Tesla Systems

This product is out of stock and is no longer available through EV West. This page is up solely for reference purposes. Please contact sales@evwest.com for more information or assistance with choosing the correct battery pack for your application.

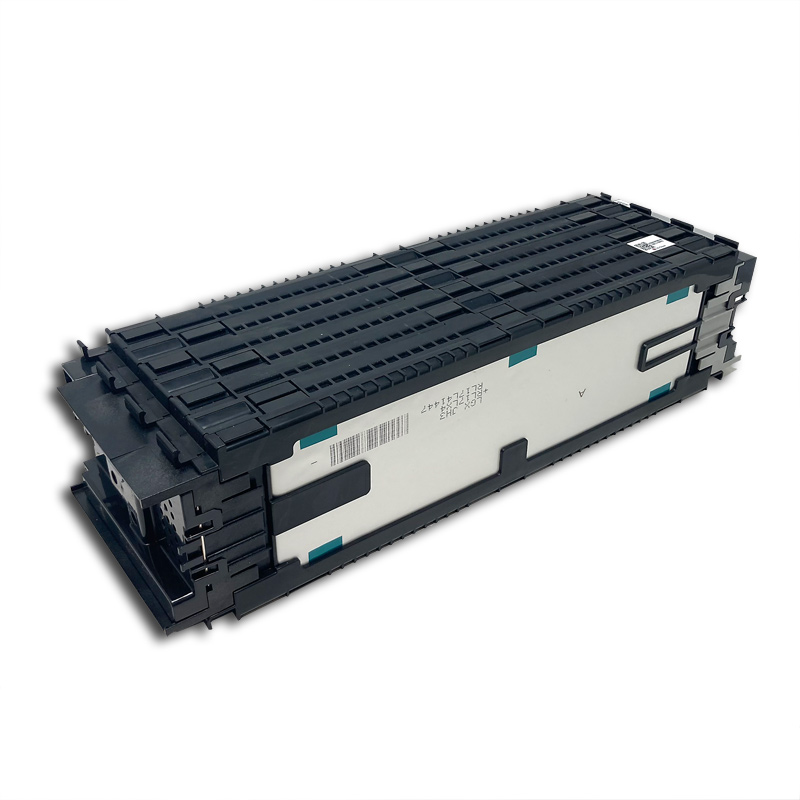

These are brand new, unused lithium JH3 64Ah battery modules that are the latest high power, high density cells to come to market. The modules are 7S for 23.1-29.4 volt operation, and this is our new best battery available for high power systems such as the Tesla drive. In bench testing we were able to hold over 500A of output for 2 minutes per cell, and coming in at a staggeringly light 11.5 pounds per kWh! We have not seen a cell like this on the market, so we had to call them Super Cells, as this is the solution many custom and high power builds have been looking for. You no longer have to sacrifice a high battery weight for a high performance system.

Typical Capacity: 63 Ah
Length: 16.75 Inches
Width: 5.0 Inches
Height: 4.125 Inches
Weight: 19.6 Pounds
Terminal Size: M5 Threaded Stud
Voltage nominal: 25.55 V
Charge voltage cut-off: 29.4 V
Discharging cut-off: 23.1 V
BMS Connector: Part No. 51005-0400, 2 per module
BMS Pins: Part No. 50013-8000, 8 per module


Click Here for Module Schematic

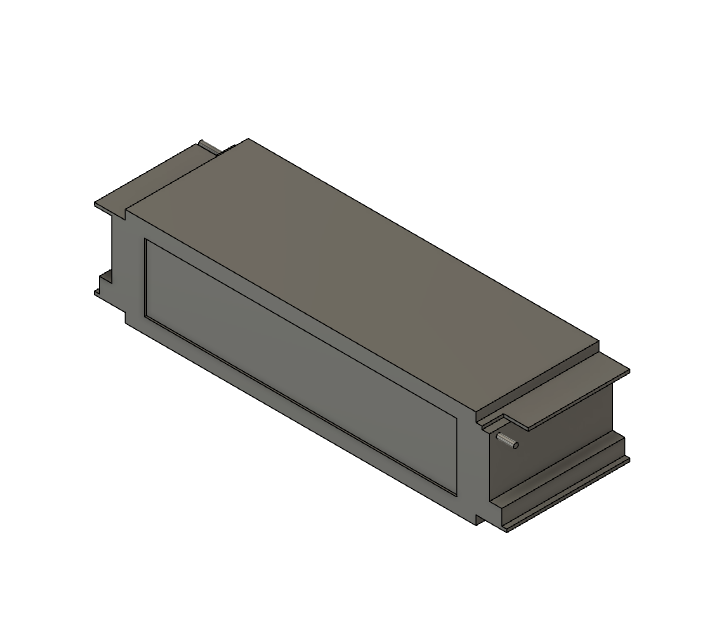

Click Here for CAD STEP File
Right click and choose Save Link As...

Click Here for Material Safety Data Sheet

UN 38.3 Report

Note: Batteries have special HazMat shipping requirements. Please contact us for international shipping.
