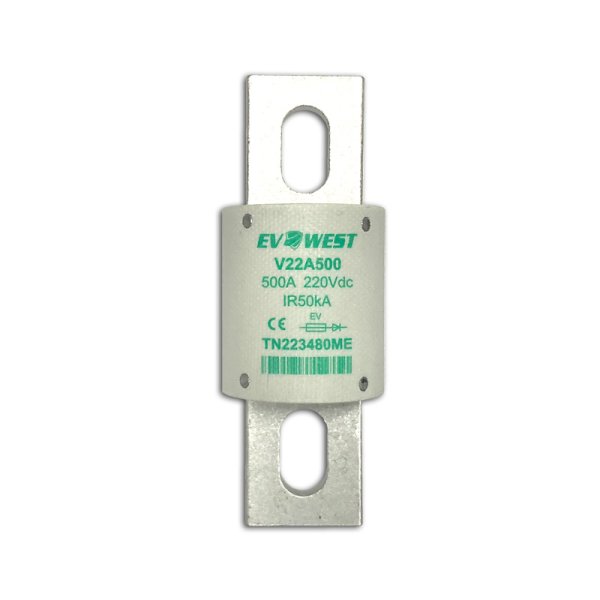

High Voltage Fuse 220 Volt 500 Amp EV22A500 EV Drive Fuse

Model: EV22A500
Our EV West fuse is good up to 220 volts, and can handle a continuous 500 amps, and a peak amperage of 700 amps.
  • Model
  • EV22A500
$74.00
 Currently out of Stock
Notify me when in stock
Product Overview

Description:

Our EV West fuse is good up to 220 volts, and can handle a continuous 500 amps, and a peak amperage of 700 amps. This fuse is designed to be used in DC voltage EV systems.

This fuse fits our Size 4 fuse holder found here:

Fuseholder 4



pdf Click Here for Fuseholder Manufacturer's Dimensional Drawing

pdf Click Here for EV West EV Fuse Block Data Sheet

pdf Click Here for EV West EV Fuses Data Sheet
