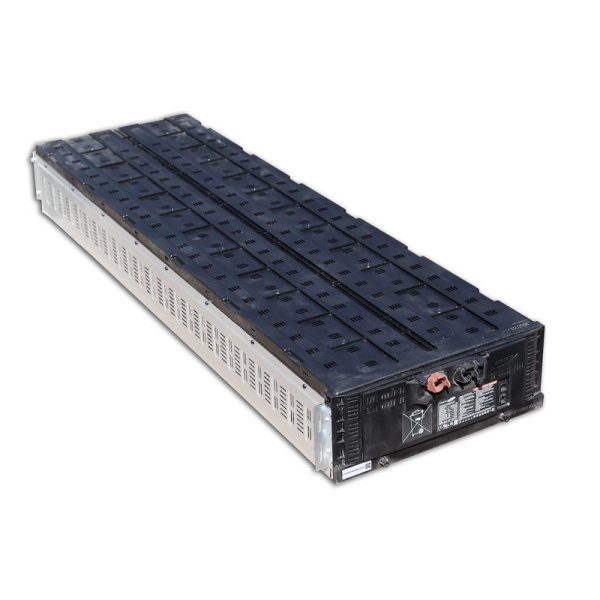

Samsung SDI ESS Energy Storage Battery 24S 87 Volt - New 19.5kWh - Arranged 2P24S - with the New Samsung 120Ah SDI Cells

EV West is not an authorized Samsung Dealer. All items are considered used.

This Samsung SDI ESS 19.5 backup battery is a brand new unit sourced from spares on a large installation, these come in brand new Samsung factory packaging. This is a special purchase, and is limited to stock on hand. These packs are rated for 19.5 kWh and are arranged 2P24S with the brand new Samsung 120Ah SDI cells. This module has a recommended operating voltage of 74-98 Volts.

Since shipping is by freight truck, please check out with will call and we will email to quote and arrange shipping. Unfortunately at this time we are no longer able to ship these internationally.

Height: 8 inches
Width: 15 inches (not including mounting tabs)
Length: 50.0 inches
Weight: 230 lbs
Mounting: Rack Mount
Discharge Power: 19.51 kW (1C or 240 Amps)
Nominal Voltage: 98.4 Volts
Nominal Capacity: 94 Ah
Voltage Range: 74.4-98.4 Volts
Battery Monitoring: Integrated Samsung Board
Connection: Power Pole Connector
Warranty Period: Ninety Days to 19.5kWh Capacity
