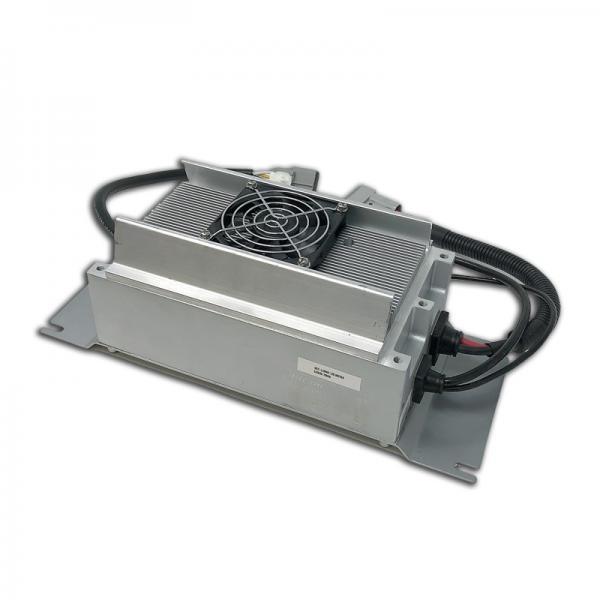

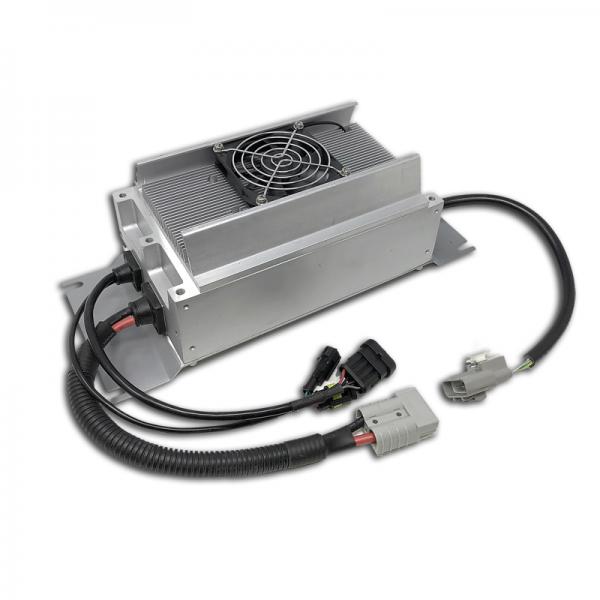

Elcon 3.3kW UHF Pre Programmed (150v) Charger

The UHF3300 is an excellent low cost solution to high voltage, medium amperage charging that comes in a sealed enclosure. Being one of the more versatile chargers by being able to accept both 110v and 220v, the UFC3300 is a great air cooled charging solution. These chargers have pre programmed voltages set up to match our specific systems. If you have any questions in regards to your traction pack voltage please reach out to sales@evwest.com or include the information in the notes when ordering.

Input Current Range: 0.2 to 16A AC
Output Current Range: 4A to 40A DC (depending on model)
Height: 4.8 inches
Width: 6.0 inches
Length: 13.8 inches
Weight: 13.75 lbs
Mounting: 4 slots, 5/16" each
Charge Algorithm: Pre Programmed
Output Voltage: 150 volts
Input Voltage Range: 90-260 volts, 50-60 Hz
Efficiency: 92 percent
Power Factor: .98
Connection In: #12-3 Cable w/Plug
Connection Out: #12-2 Cable w/Plug
Input Protection: Internally protected
Output Protection: Internally protected
Isolated: Yes, may be combined with other chargers
Display: Tri-color LED
Preset Cutoff Voltage: Yes
Thermal Cutoff Point: 80C reduced output, 85C shutdown
Thermal Cooling: Thermostat controlled, variable speed fan
Reverse Polarity Protection: Yes
Warranty Period: One year





Click Here for Spec Sheet - 120V Version
