WE HAVE A LIMITED NUMBER AVAILABLE OF THIS PRODUCT

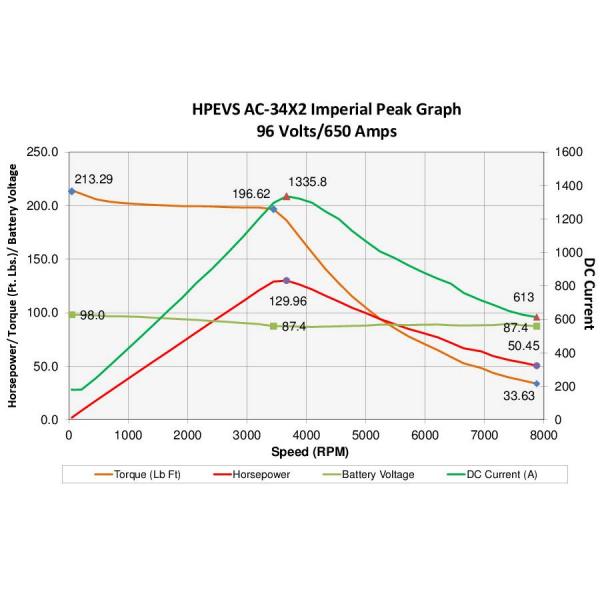

This is a great dual motor setup for vehicles up to 4500 pounds, or a high performance setup in lighter vehicles. The single motor case makes installation easier than other dual motor setups, and twin Curtis 1238e-7621 controllers are included. This is a ready to go system that hits 130 horsepower and a whopping 213 foot pounds of torque!
This kit includes:

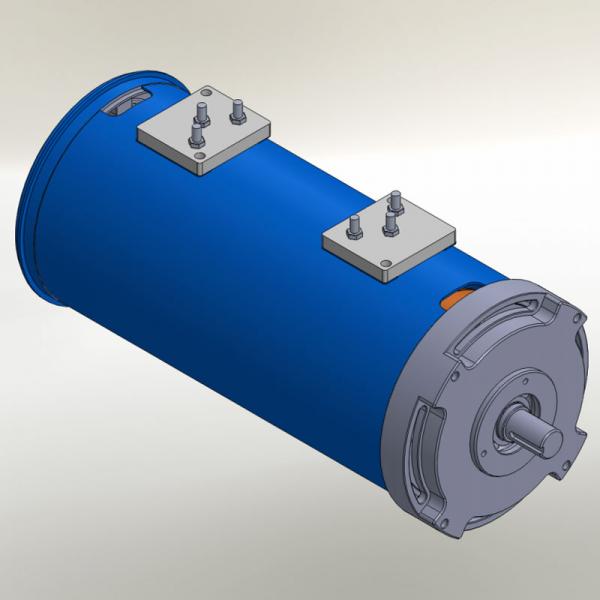

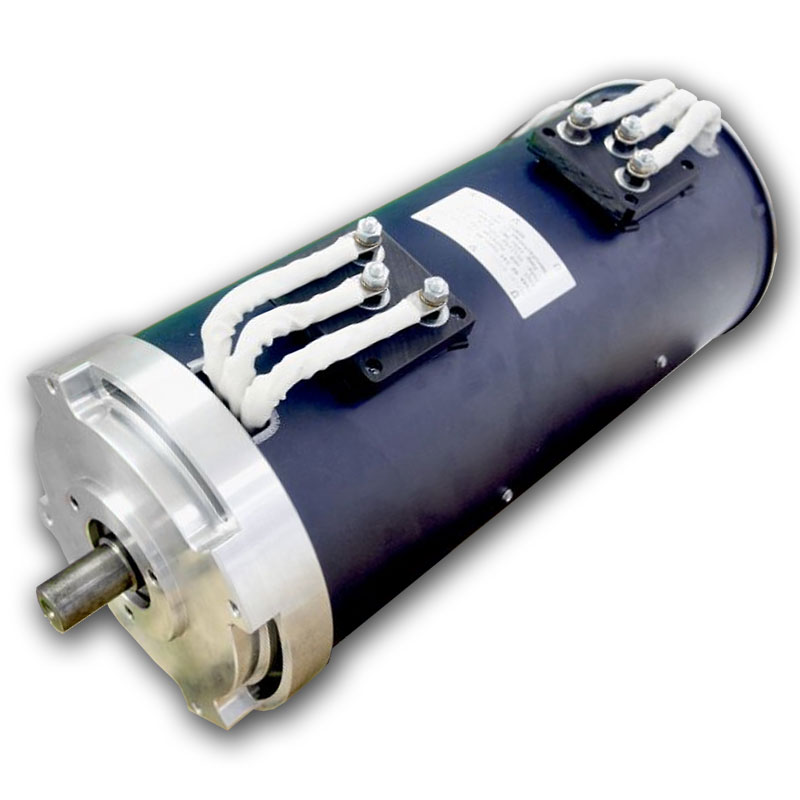

HPEVS AC34x2 Twin Motor

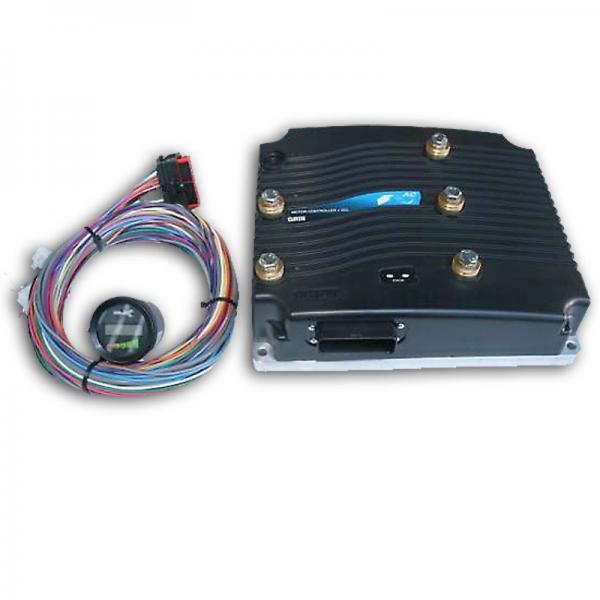

2 Curtis 1238e-7621 Controllers
2 35 Pin Connector and Wire Harness
2 Gigavac GV200-QA Contactor
2 12 Volt HV Relay
2 Curtis 840 Dash Gauge
2 SPST Menu Button
2 SPST Mode Switch

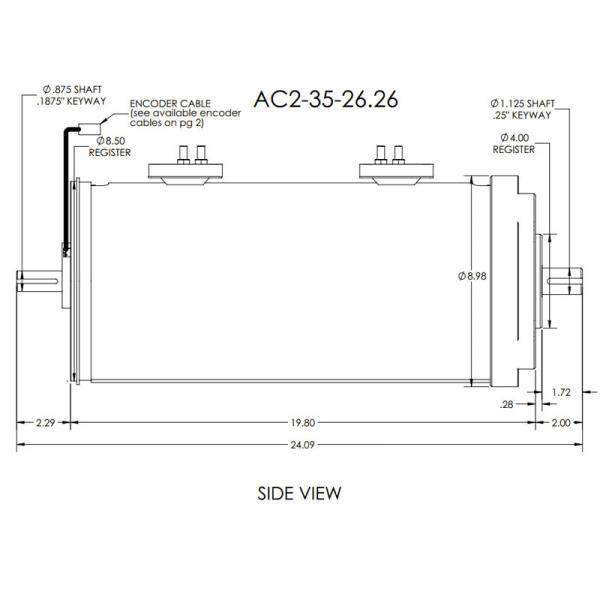

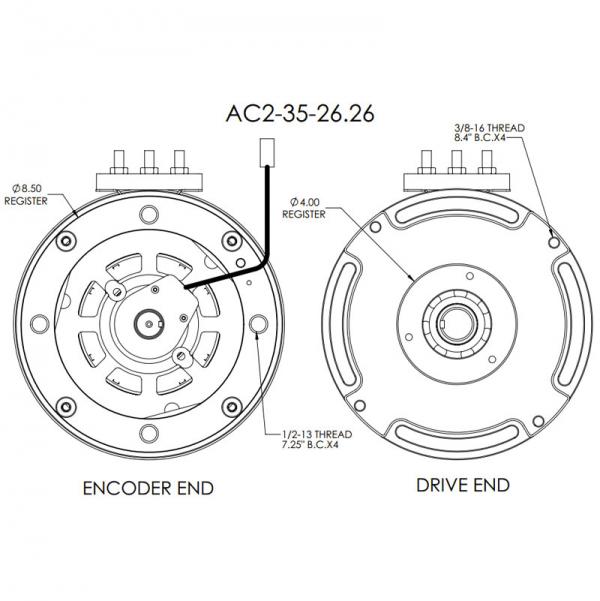

Motor Face: B-Face
Motor Diameter: 8.9 Inches
Motor Case Length: 19.8 Inches
Motor Shaft Length End to End: 24.1 Inches
Motor Type: AC Induction
Brushes: No
Interpoles: No
Weight: 68 Kg
Max Voltage Input: 129
Terminal Stud Size: 3/8 Inch
Integrated Sensors: Encoder
Rated Torque: 213 Lb Ft
Rated Power: 125 HP
Continuos RPM: 5,000
Max RPM: 10,000
RPM Sensor: No
Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
Acc/Commutator End Shaft: Optional 7/8 Inch With 3/16 Keyway
Timing: N/A
Max Efficiency: 88%
Thermal Cooling: Internal Fan
Max Temperature: 180 Degrees Celsius (356 Degrees Fahrenheit)
Matching Dual Controllers Included In Price: Curtis Controller (quantity two)
Warranty Period: 1 Year
Note: Due to the excessive weight of motors additional freight charges apply.
