The CATL battery has a capacity of 173Ah and a nominal voltage of 172.8 V, utilizing LFP chemistry. The cells are meticulously balanced within a voltage range of 3.295V to 3.298V, ensuring optimal performance and longevity. Each module is equipped with resistive heaters along the sides, boasting a total resistance of 6.3 Ohms. These heaters are powered externally, allowing for flexible control, and can be disconnected individually from each module for convenience and safety.
Although the modules are glued in place, they can be removed with some effort, allowing for maintenance or replacement as needed. The bottom plate includes coolant ports, which, if the modules remain attached, enhance the cooling efficiency of the system. The battery pack consists of three modules in series, each containing 18 cells connected in series, resulting in a total of 54 cells in series.
Designed with practicality in mind, the battery pack features built-in water cooling, ensuring effective temperature management during operation. Additionally, the cells are easily accessible, providing the flexibility to add your own Battery Management System (BMS). This design ensures that the battery can be tailored to specific requirements, making it a versatile and reliable choice for various applications.
Cell info
Nominal Capacity: 173 Ah
Nominal Voltage: 3.2V
Cell Voltage Range: 2.5V-3.65V
Manu. Charging Voltage: 3.65v per cell (EV West recommends 3.420 volts for longevity)
Module Info: 54S1P (3x18S modules)
Nominal Capacity: 173 Ah
Nominal Voltage: 172.8 V
Voltage Range: 162 V - 180 V
Pack info: 54S1P
Length: 37.5in
Width: 24.5in
Height: 10in
Weight: 491lb
Note: Batteries have special HazMat shipping requirements. Please contact us for a custom shipping quote when ordering batteries.
Not eligable for internatinal shipments.

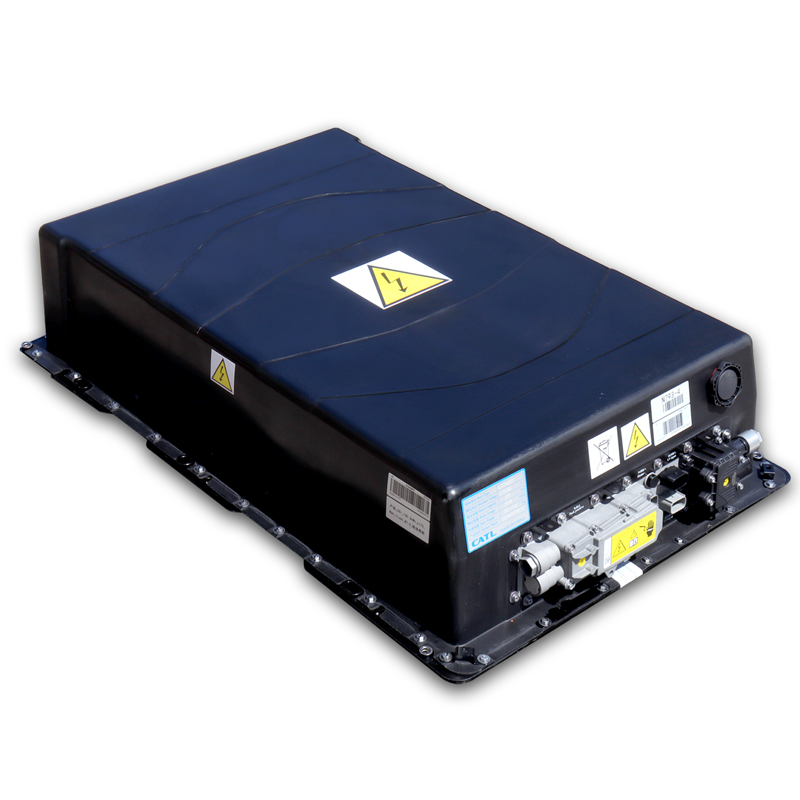

Dimensional Drawing for the CATL battery
Spec sheet for the CATL battery
Settings page for the BMS values for the CATL pack
CATL Battery BMS Installation Guide
If using a BMS with this battery we use and recommend this connector for the data port on this battery pack:
MX150 Bulkhead and Connector - Battery Box CAN Bus Plug Kit
--
