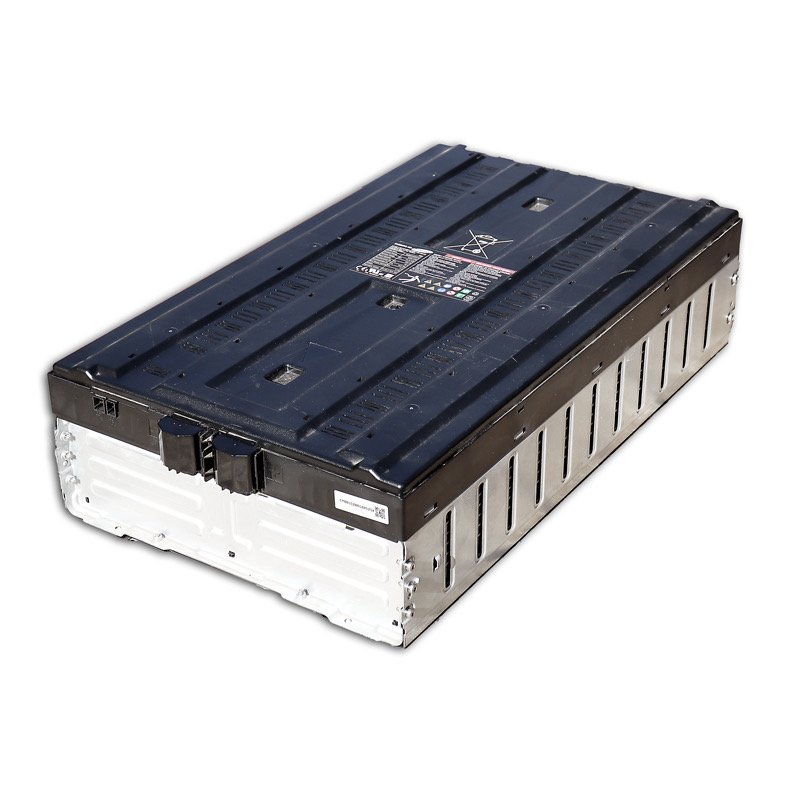

Samsung SDI ESS Energy Storage Battery 12S 49.8 Volt - New 8.8kWh

Model: ESS-8.8

This Samsung SDI ESS 8.8 backup battery is a used. . These packs are rated for 8.8 kWh and are arranged 2P12S with Samsung 94Ah SDI cells.

EV West is not an authorized Samsung Dealer.

  • Model
  • ESS-8.8
$988.00
 Currently out of Stock
Notify me when in stock

Description:

EV West is not an authorized Samsung Dealer. All items are considered used.

This Samsung SDI ESS 8.8 backup battery is a used unit sourced from a large installation. This is a special purchase, and is limited to stock on hand. These packs are rated for 8.8 kWh and are arranged 2P12S with Samsung 94Ah SDI cells. This module has a recommended operating voltage of 38.4-49.8 Volts.

Since shipping is by freight truck, please check out with will call and we will email to quote and arrange shipping. Unfortunately at this time we are no longer able to ship these internationally.

Height: 6 inches
Width: 14 inches (not including mounting tabs)
Length: 25.0 inches
Weight: 125 lbs
Mounting: Rack Mount
Discharge Power: 8.8 kW (1C or 94 Amps)
Nominal Voltage: 44 Volts
Nominal Capacity: 200 Ah
Voltage Range: 38.4-49.8 Volts
Battery Monitoring: Integrated Samsung Board


Link to BMS connector: https://www.scondar.com/wire-to-board/smaw200-nn-2mm-pitch-connectors/

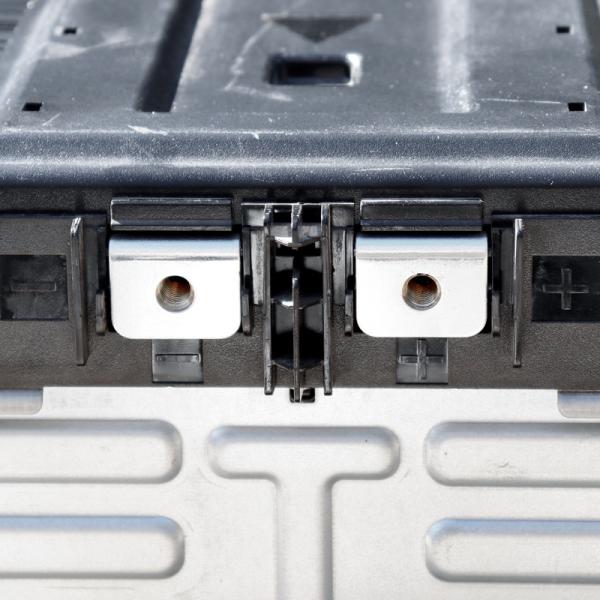

Connection: M8 Bolt
Warranty Period: Ninety Days to 8.8kWh Capacity
