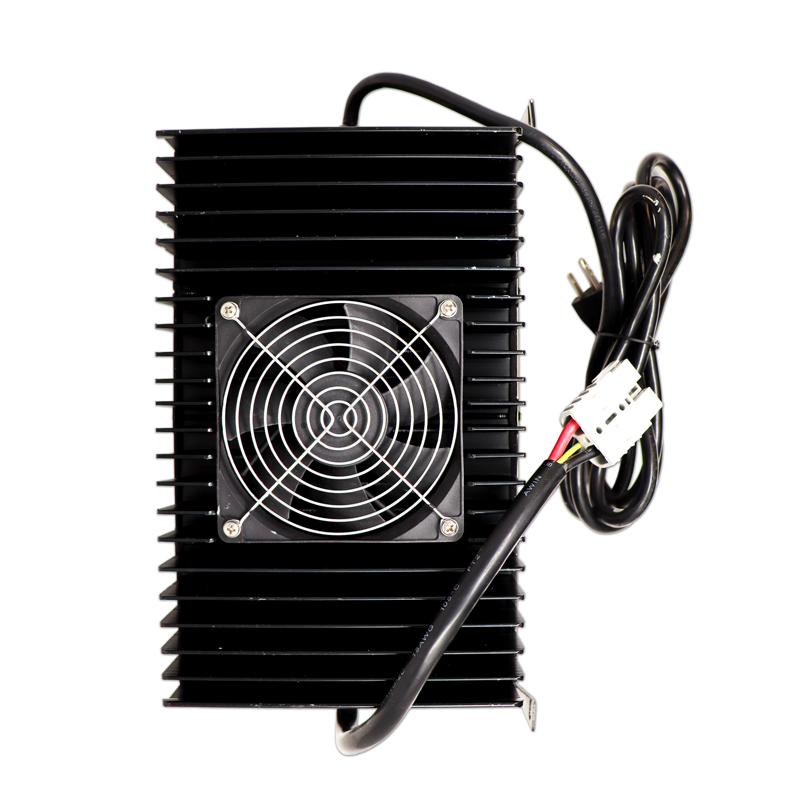

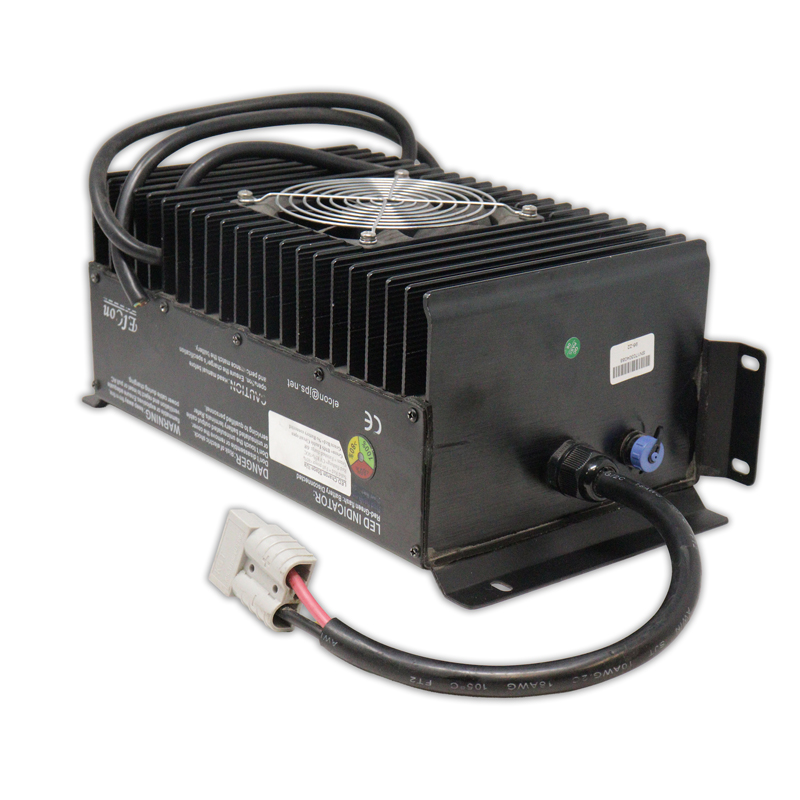

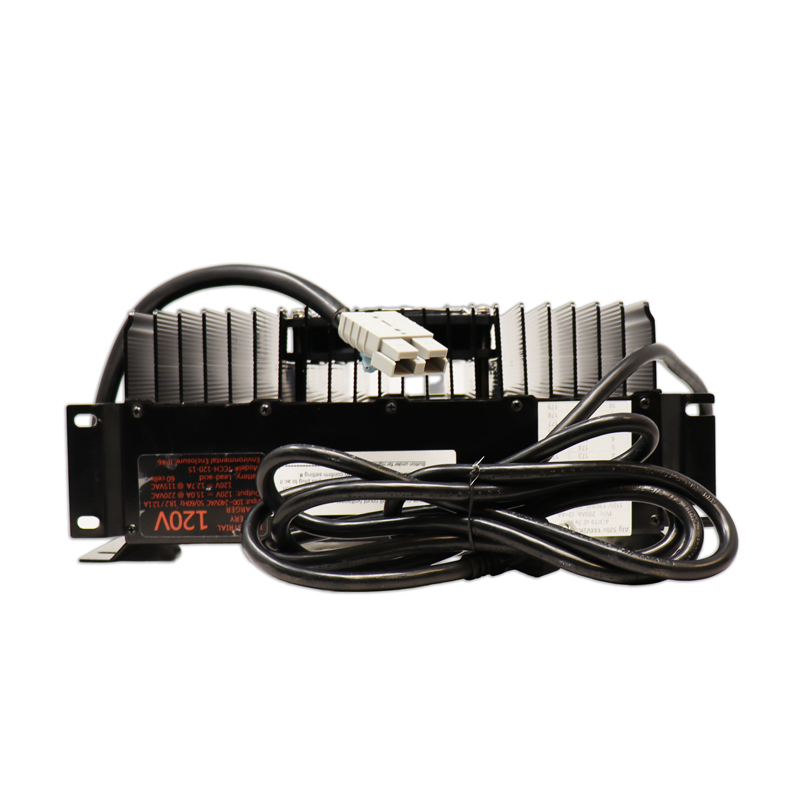

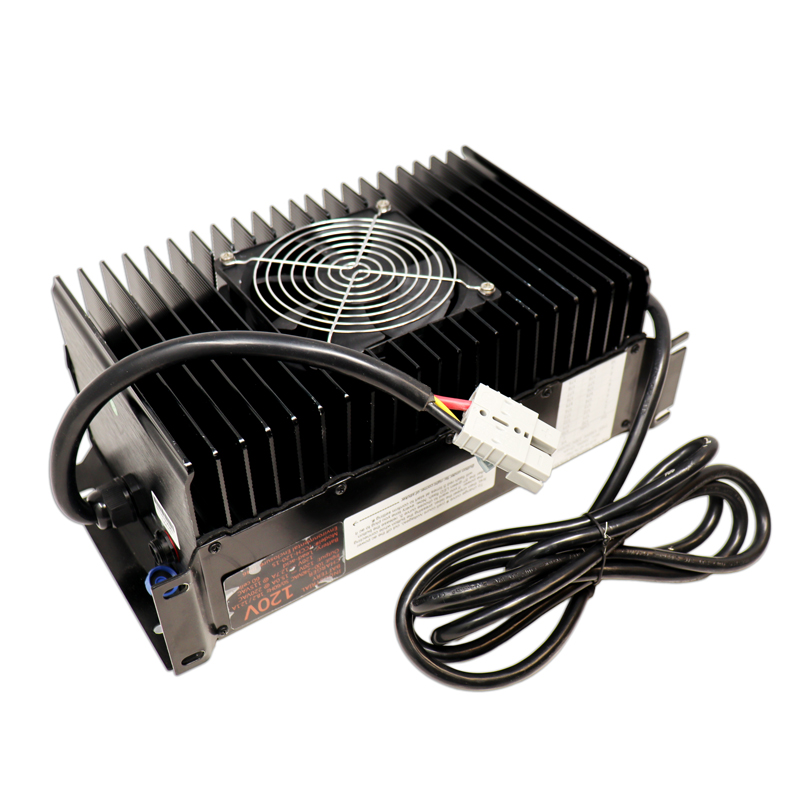

The Elcon PFC2500 is a 2.5kW high-frequency, power-factor-corrected battery charger designed for electric vehicle and high-voltage battery applications.
This version is preprogrammed by Elcon for 170-179V output, with ten selectable voltage settings. The desired output voltage is selected using the onboard selector.
The charger can be used with any lithium battery chemistry, provided the battery pack is configured appropriately for the available voltage range.
Battery Compatibility:
- 41S or 42S lithium-ion battery packs
- 7S Tesla Model S/X modules
- 51S or 52S LiFePO4 battery packs
Specifications:
- Model: Elcon PFC2500
- Output Voltage: 170-179V, selectable
- Maximum Output Power: 2.5kW
- Compatible with lithium battery chemistries
- 10 selectable voltage settings
- Input: 115VAC or 230VAC
- Power at 115VAC: 1360W
- Power at 230VAC: 2420W
- Power-factor corrected
- Fan cooled
Selectable Output Voltages:
170V, 171V, 172V, 173V, 174V, 175V, 176V, 177V, 178V, 179V
Note: The end user can select the available voltage settings but cannot independently modify the charging algorithm or other programmed parameters without sending the unit back to Elcon for reprogramming.
